Hager FP95TW FP95TW Switchboard cabinet Surface-mount Content 1 pc(s)

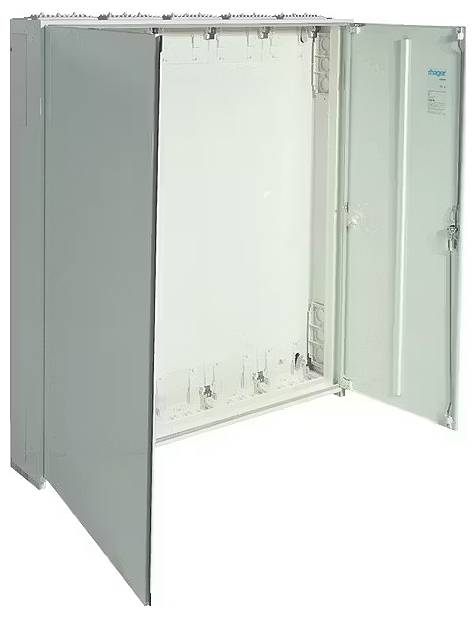

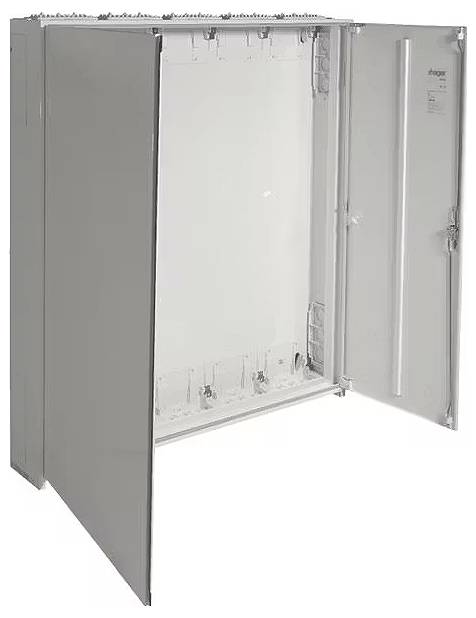

Cabinet, univers, IP54/I, 1400x1300x205mm, empty.Wall cabinet for interior mounting, with VDE opinions (production monitoring) according to DIN EN 61439 (VDE 0660-500), standard DIN 43870 for surface mounting, flush mounting or partly countersunk mounting. For installation of a low-voltage distribution up to 355 A, 3AC 230/400 V 50 Hz. Protection type IP44/IP54, protection class IP3X behind the door, air and leakage paths according to DIN VDE 0110-1/-2. Consists of cupboard with door made of powder-coated, burned-in, stable profiled 1 mm thick steel plate. Inner lining made of plastic. Universal cable inlets installed on top and bottom per field, rear knockout in the plastic part and busbar grommets as both sides embossed in the lower area. Door flush fitted with inside, adjustable hinges that can be angled either on the right or left with a 110 degree opening angle. Door lock with pre-driver, from width 800 mm and with all cabinets from a height of 1250 mm with (no suggestions) three-point lock. Door lock can be replaced by other locks. Cabinet next to each other and flange-able on top of each other. Cabinet size 1 to 5 fields.

This text is machine translated.
