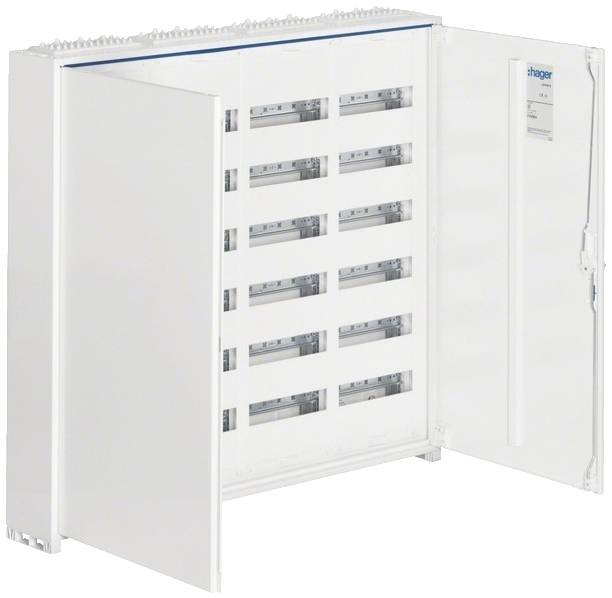

Hager FWB64S FWB64S Field distributor Surface-mount No. of rows = 24 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Field distributor
No. of rows
24
Mounting type
Surface-mount
Width
1050 mm
Height
950 mm
Datasheet (PDF)
Technical specifications
- Product type
Field distributor
- No. of rows
24
- Mounting type
Surface-mount
- Factory colour
Pure white (RAL 9010)
- Width
1050 mm
- Height
950 mm
- Dim
(W x H x D) 1050 x 950 x 165 mm
- Depth
165 mm
- Content
1 pc(s)
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3197424 Hager FWB64S FWB64S Field distributor Surface-mount No. of rows = 24 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3197424 Hager FWB64S FWB64S Field distributor Surface-mount No. of rows = 24 Content 1 pc(s)
Description
Field vert. AP, UNIVERS, IP44, SKII, 288PLE, H:950xB:1050xT:161mm, QuickConnect. Field distributor according to DIN EN 61 439-1/-3, Dim. According to DIN 43 870. For installation of devices up to 125 A, air and creepage distances according to DIN EN 60664-1. Consisting of cupboard with door made of powder-coated and burned-in steel plate. From cabinet width 800 mm (3-field), two-door structure. Right doors have a maximum width of 2-field. Complete cabinet with installation kit equipped with profiled mounting rails, 7.5 mm high rails in 125 mm center distance and matching protection covers, including PE/N QuickConnect terminals installed on the carrier. Cable entries above/below by removable flexible plastic flange plates, additionally replaceable. Door with internal adjustable hinges and an opening angle of 110°. Doors can be hinged on right and left, can be changed without tools Door stop. Standard door lock with three-point bar lock and sealable folding handle. Interchangeable lockable locking systems and doors, see accessories.
