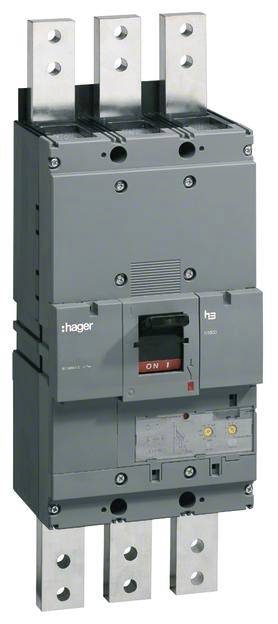

Hager HEF980H Circuit breaker 1 pc(s) Adjustment range (amperage): 1250 A (max) Piece
EAN:
Part number:
Item no:
Product type
Circuit breaker
Amperage adjustment range (max.)
1250 A
Packaging type
Piece
Type
HEF980H
Adjustment range (amperage)
1250 A (max)
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Circuit breaker
- Type
HEF980H
- Amperage adjustment range (max.)
1250 A
- Adjustment range (amperage)
1250 A (max)
- No. of pins
3-pin
- Features
+ test button
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3194465 Hager HEF980H Circuit breaker 1 pc(s) Adjustment range (amperage): 1250 A (max) Piece
User & Safety Instructions
User & Safety Instructions 3194465 Hager HEF980H Circuit breaker 1 pc(s) Adjustment range (amperage): 1250 A (max) Piece
Description
Power switch size H1600 3-pin 70kA 1250A LSI. Circuit breaker according to DIN EN 60947-2 size H1600, with electronic setting. Thermal triggering, magnetic triggering and short-term delay for the protection of electrical systems and networks Installation on mounting plate. The three different operating modes can be recognized at the position of the toggle (ON = top, OFF = bottom, activated = middle position). The switches have a mechanical test button. The function of the circuit breakers can be extended by means of various accessories. Including phase separator walls and connection lugs.
