Hager HIC425G HIC425G Changeover 4-pin 400 A 415 V
EAN:
Part number:
Item no:
Product type
Changeover
Number of pins
4
Nominal current - rounded value
400 A
Nominal current
400 A
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Product type
Changeover
- Number of pins
4
- Nominal current - rounded value
400 A
- Nominal current
400 A
- Content
1 pc(s)
- Nominal voltage
415 V
1
0
250 A
4
380-415 V
50 kA
IP00
0
1
TRUE
TRUE
Cable clamp
FALSE
Other
TRUE
TRUE
TRUE
90 kW
15 kA
Other
TRUE
FALSE
FALSE
TRUE
FALSE
415 V
FALSE
FALSE
Built-in device fixed built-in technique
250 A
164 kW
TRUE
200
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3200003 Hager HIC425G HIC425G Changeover 4-pin 400 A 415 V
User & Safety Instructions
User & Safety Instructions 3200003 Hager HIC425G HIC425G Changeover 4-pin 400 A 415 V
Description

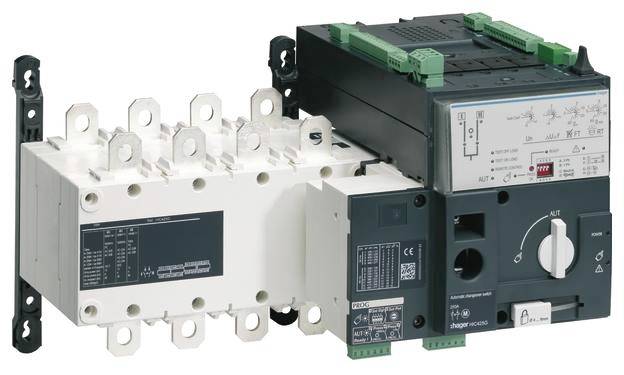

Automatic switch for mains generator 4x250A. Load switch with motor drive for generator/network according to DIN EN 60947-3 and DIN EN 60947-6-1 for the remote switching of 2 low-voltage circuits with safety isolation for installation in distributors. The changeover switch consists of two switch disconnectors with locking and remote drive arranged on top of each other. 3 stable switching positions (I-0-II) and automatic switching under load from one position to the other safety isolation with switch position indicator - manual emergency switch handle - generously dimensioned connection rails, which enable the use of connecting rails - integrated control unit for automatic switching - application especially for line/generator replacement - use with temporary interruption of the load supply, i.e. not without interruption. With standby relay with constant monitoring of the availability of the device, integrated auxiliary switch (SÖ) for each switching point and automatic or manual switching can be selected. Note: Manual locking with padlock is possible.
