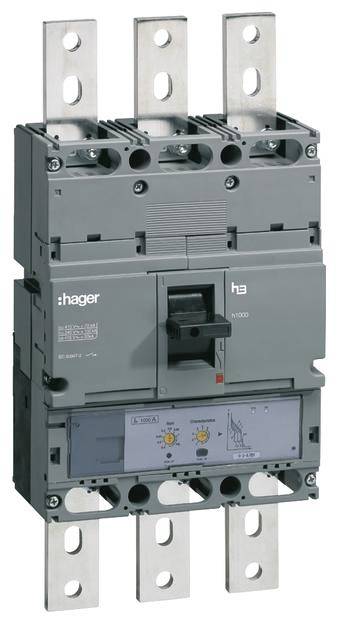

Hager HNE970H Circuit breaker 1 pc(s) Adjustment range (amperage): 1000 A (max)
EAN:
Part number:
Item no:
Product type
Circuit breaker
Amperage adjustment range (max.)
1000 A
Type
HNE970H
Adjustment range (amperage)
1000 A (max)
No. of pins
3-pin
Datasheet (PDF)
Technical specifications
- Product type
Circuit breaker
- Type
HNE970H
- Amperage adjustment range (max.)
1000 A
- Adjustment range (amperage)
1000 A (max)
- No. of pins
3-pin
- Features
+ test button
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3194499 Hager HNE970H Circuit breaker 1 pc(s) Adjustment range (amperage): 1000 A (max)
User & Safety Instructions
User & Safety Instructions 3194499 Hager HNE970H Circuit breaker 1 pc(s) Adjustment range (amperage): 1000 A (max)
Description
Circuit breaker size h1000 3-pin 50kA 1000A electronic adjusting. LSI Circuit breaker according to DIN EN 60947-2, frame size h1000, with electronic adjustment Thermal triggering, magnetic triggering and short-term delay for the protection of electrical systems and networks Installation on mounting plate. The three different operating modes can be recognized at the position of the toggle (ON = top, OFF = bottom, activated = middle position). The switches have a mechanical test button. The function of the circuit breakers can be extended by means of various accessories. Including phase separator walls and connection lugs.
