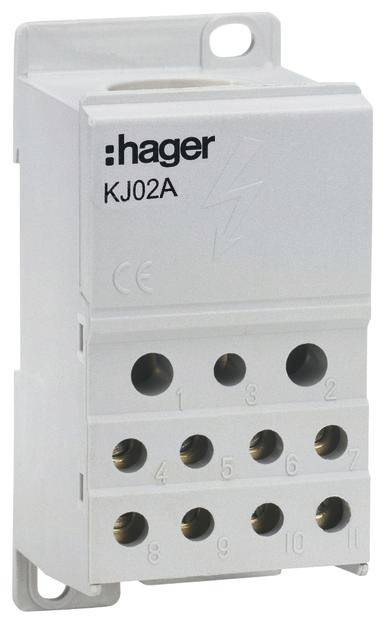

Hager KJ02A Distribution block 45 mm Screws Grey 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Distribution block
Connection
Screws
Cross section (flexible) (max.)
95 mm²
Nominal current - rounded value
250 A
Datasheet (PDF)
Highlights & Details
Hager KJ02A distribution block 250V 1pole 1x35-95/2x6-35/5x1.5-16/4x1.5-10qmm
- KJ02A
Technical specifications
- Packaging type
Piece
- Product type
Distribution block
- Connection
Screws
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
95 mm²
- Clamp width
45 mm
- Pins per row
1
- Number of pins
1
- Factory colour
Grey
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Manufacturer part #
KJ02A
- Content
1 pc(s)
- Type
KJ02A
- Dim
(W x H) 45 mm x 95 mm
- Width
45 mm
- Height
95 mm
- Weight
0
45
95 mm
50 mm
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3194146 Hager KJ02A Distribution block 45 mm Screws Grey 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3194146 Hager KJ02A Distribution block 45 mm Screws Grey 1 pc(s) Piece
Description
Distribution block, 250A, 1-pole, 1 x 35-95² / 2 x 6-35² / 5 x 1, 5-16² / 4 x 1, 5 - 10²
