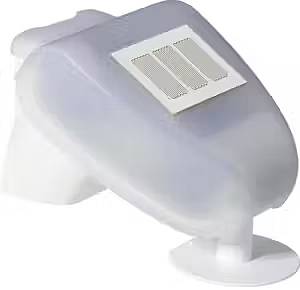

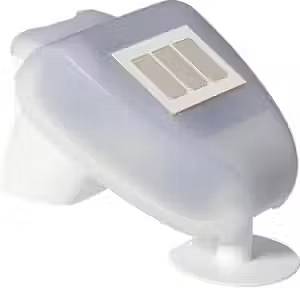

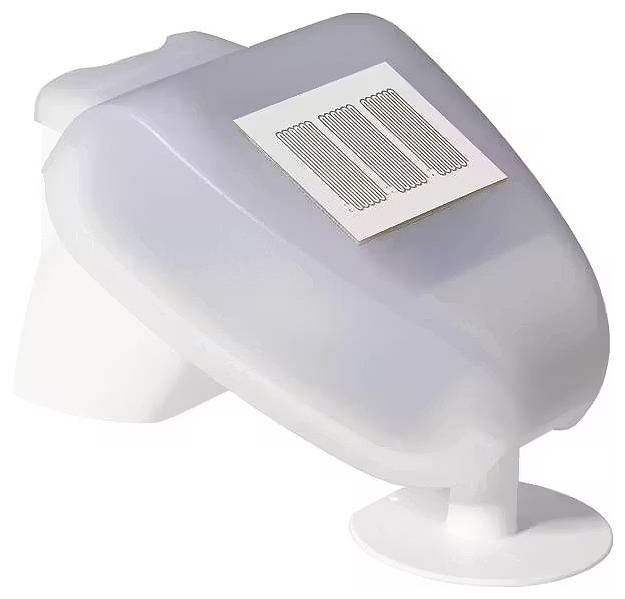

Hager KNX TG053A Weather station

Weather station KNX with GPS.Weather station as compact device for mast or wall mounting, including mast / wall bracket. The KNX weather station GPS supplies the current weather data directly to the KNX bus. Equipped with: Heated sensor for measuring wind speed, measuring range 0-35 m/s, brightness sensor, measuring range 0-150 k Lux, external temperature sensor, measuring range -30 to +80°C, heated rainfall monitor, receiver for GPS signal for time and location determination, transmitting all measured values via the bus. All values can be used to control threshold-dependent switching outputs. Shading control for up to 6 facades with fin and shadow edge tracking. The weekday timer switch switches up to 4 different time periods per day. The calendar time switch can also be used to set 3 additional periods in which up to 2 on/off switching takes place daily. Switching outputs for all measured and calculated values.8 logical AND and OR links of up to 4 input objects each.
Number of communication objects: 254
