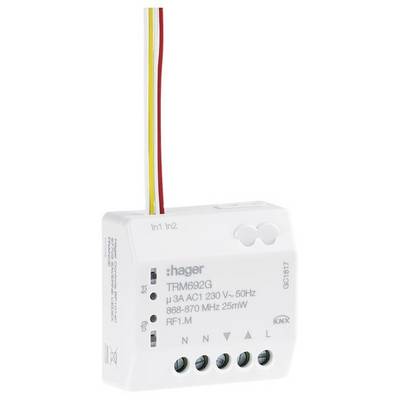

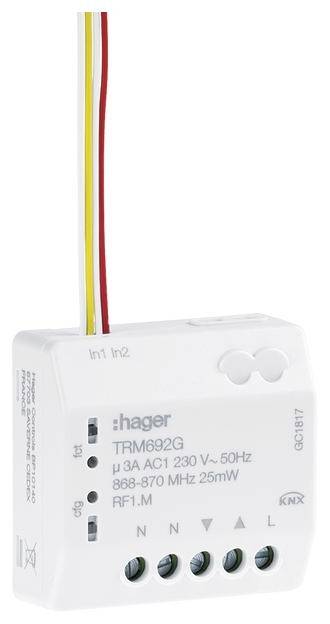

Hager KNX TRM692G Blinds actuator
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Blinds actuator
- Series
KNX
- Transfer Standard (Smart Home)
Manufacturer-specific
IP20
- Data transfer (Smart Home)
Wireless
- Mounting type
Flush mount
- Width
300 mm
- Height
200 mm
- Depth
400 mm
- Dim
(W x H x D) 300 x 200 x 400 mm
- Hub
Not required, optional for remote access
- Weight
1000 g
- Features
Signal input
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3198435 Hager KNX TRM692G Blinds actuator
User & Safety Instructions
User & Safety Instructions 3198435 Hager KNX TRM692G Blinds actuator
Description
Wireless UP blind actuator 1x/binary input 2x 3A. KNX-radio electronic blind actuator UP with screw-lift terminals for installation behind UP inserts. Quicklink (Push Button Mode) for tool-free configuration and function buttons with LED. Integration via KNX radio AP media coupler into the KNX-TP system. Functions: With 2 relay contacts mechanically and electronically locked against each other, manual operation up/down, scene memory can be locked, scenes can be called via KNX radio devices, repeater function, reset function (to factory settings). Quicklink functions: Blind, 2 scenes, forced control, up/down button. Easy Additional functions: 6 scenes. ETS additional functions: +6 scenes, operating mode on/off, 1 key control on/off, 2 x alarm, status display Observe the instructions of the motor manufacturers!
