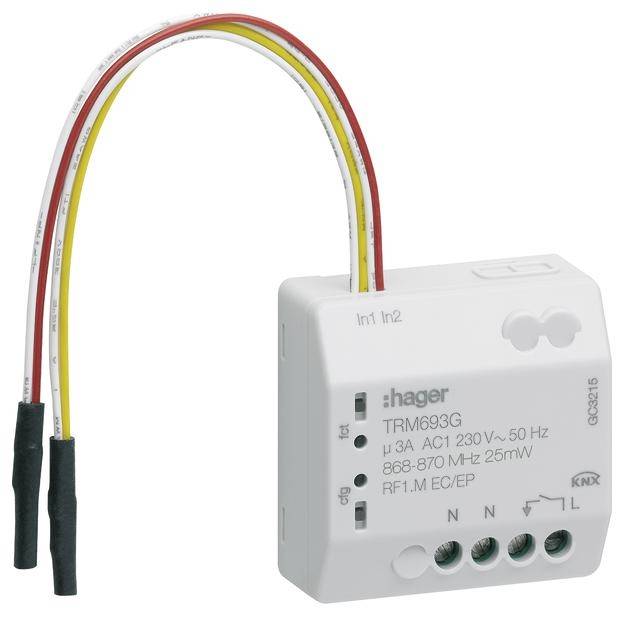

Hager KNX TRM693G Actuator
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Actuator
- Series
KNX
IP20
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Channels
1
- Mounting type
Flush mount
- Height
20 mm
- Hub
Not required, optional for remote access
- Weight
0
- Features
3-lead
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3198436 Hager KNX TRM693G Actuator
User & Safety Instructions
User & Safety Instructions 3198436 Hager KNX TRM693G Actuator
Description
Radio UP switch actuator 1way/binary input 2way 230V 3A 3wire. KNX radio switch actuator UP with screw-lift terminals for installation behind UP inserts. Quicklink (Push Button Mode) for tool-free configuration and function buttons with LEDs. With independent mains-supplied binary input for potential-free contact without neutral conductor connection, 4-wire line for control by e.g. switch/button/timer, call of the scenes via KNX-radio devices, saving of scenes (lockable), reset function (to factory settings). Quicklink functions: Switching, 2 scenes, time switching, button closer, forced control. Easy additional functions: +6 scenes. ETS additional functions: +6 scenes, operating mode on/off, 1 key control on/off, switch, 2 x alarm, Status indicator Note: Optional integration via KNX radio media coupler into the KNX-TP system.
