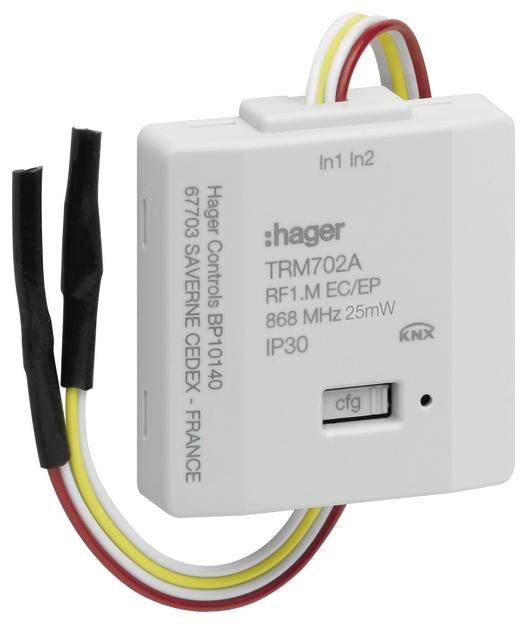

Hager KNX TRM702A Binary input
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Binary input
- Series
KNX
- Used at
Indoors
IP30
- Data transfer (Smart Home)
Wireless
- Channels
2
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
n.rel.
- Weight
0
- Features
Signal input
Flush mounted (plaster)
FALSE
TRUE
FALSE
FALSE
0
None
FALSE
IP30
TRUE
TRUE
TRUE
11
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3198438 Hager KNX TRM702A Binary input
User & Safety Instructions
User & Safety Instructions 3198438 Hager KNX TRM702A Binary input
Description
Wireless flush-mounted binary input 2-fold with battery. KNX radio binary input UP for installation behind UP applications. Quicklink (Push Button Mode) for tool-free configuration and function buttons with LEDs. With 2 independent battery-supplied binary inputs for potential-free contacts, 4-wire line for control by, for example, button, reset function (to factory settings). Quicklink functions: Switch, dim, blind, 2 scenes, time switch, Pushbutton NO, forced-control, up/down pushbutton. Easy Additional functions: +6 scenes, operating mode on/off, 1 key control up/down. ETS additional functions: +6 scenes, operating mode on/off, 1 key control on/off, switch, 2 x alarm, Status indicator Note: Optional integration via KNX radio media coupler into the KNX-TP system.
