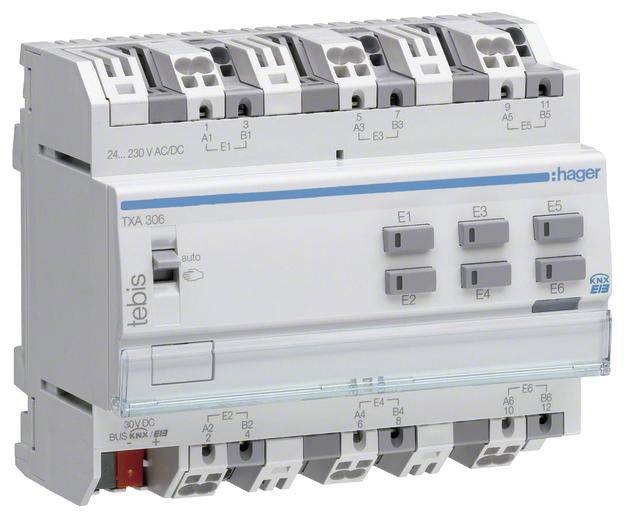

Hager KNX TXA306 Binary input
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Binary input
- Series
KNX
- Used at
Indoors
IP20
- Operating voltage
24 V DC/AC
- Data transfer (Smart Home)
Wired
- Channels
6
- Mounting type
DIN rail
- Factory colour
Multicolour
- Hub
Not required, optional for remote access
- Features
Signal input
DRA (DIN-rail adapter)
TRUE
FALSE
FALSE
TRUE
6
None
FALSE
IP20
TRUE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3197781 Hager KNX TXA306 Binary input
User & Safety Instructions
User & Safety Instructions 3197781 Hager KNX TXA306 Binary input
Description
Binary input 6-way, universal, REG, KNX. Binary input, universal modular for connection to signal transmitters (e.g. conventional switches, buttons, alarm transmitters, etc.). Each input can be used either at 24 V AC/DC - 230 V AC or as a potential-free input. The device has a manual operation (also lockable), which enables the bus function to be tested independent of the inputs. The function of the LED display can be parameterized. Through the power failure monitoring a distinction between open input and voltage failure is possible by specification of a reference input. The input signals are converted into the corresponding bus frames independently of each other. Functions: Lighting, blinds, shutter and/or heating control, counting functions, and scene call are freely definable for each input. The device is equipped with installation-friendly QuickConnect connection technology.
