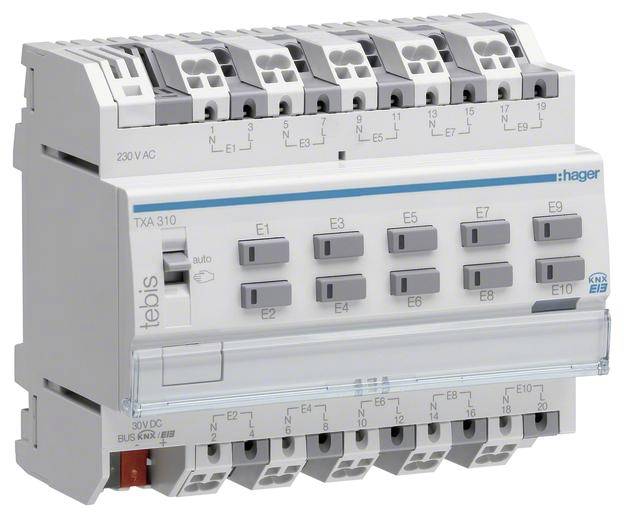

Hager KNX TXA310 Binary input Sonstiger Sensor
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Binary input
- Series
KNX
- Used at
Indoors
IP20
- Operating voltage
230 V AC
9 W
- Data transfer (Smart Home)
Wired
- Channels
10
- Mounting type
DIN rail
- Factory colour
Multicolour
- Hub
Not required, optional for remote access
- Weight
0
- Features
Signal input
DRA (DIN-rail adapter)
TRUE
FALSE
FALSE
TRUE
6
None
FALSE
IP20
TRUE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3197782 Hager KNX TXA310 Binary input Sonstiger Sensor
User & Safety Instructions
User & Safety Instructions 3197782 Hager KNX TXA310 Binary input Sonstiger Sensor
Description
Binary input 10-way, 230 V~, REG, KNX. Modular binary input for connection to a 230 V signal generator (e.g. conventional switches, buttons, alarm generators, etc.). The device has a manual operation (also lockable), which enables the bus function to be tested independent of the inputs. The function of the LED display can be parameterized. Through the power failure monitoring a distinction between open input and voltage failure is possible by specification of a reference input. The 230 V input signals are converted independently into the corresponding bus telegrams. Each input has a separate N-connection and can be connected to a different phase. Functions: Lighting, blinds, shutter and/or heating control, and scene access can be freely defined for each input. The device is equipped with installation-friendly QuickConnect connection technology.
