Buy Hager KNX TXD503 Motion detector TXD503

A round ceiling motion sensor with two side mounting brackets for installation in a ceiling panel.

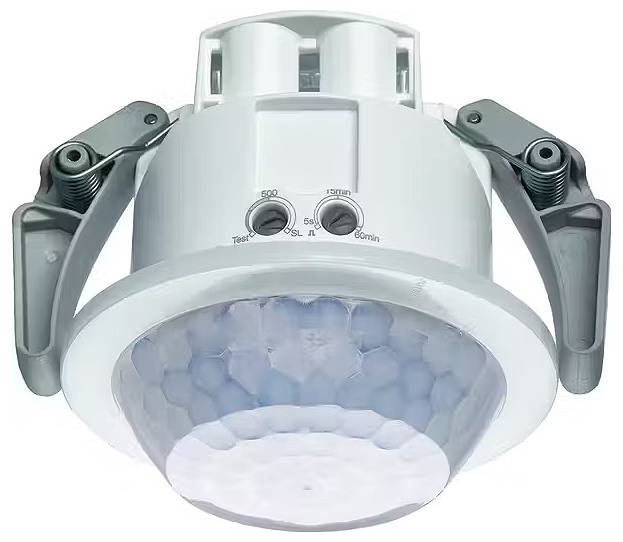

Ceiling-mounted motion sensor device with two adjustable arms and a hemispherical lens cover in the centre.

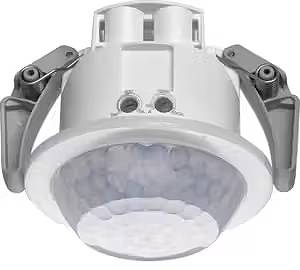

Ceiling-mounted motion sensor with a circular lens and two mounting rails, used for detecting movement within a room.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Motion detector

Series: KNX

Used at: Indoors

Data transfer (Smart Home): Wired

Mounting type: Recess-mount

Hub: Not required, optional for remote access

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3359875 Hager KNX TXD503 Motion detector TXD503

User & Safety Instructions

User & Safety Instructions 3359875 Hager KNX TXD503 Motion detector TXD503

Information

Information 3359875 Hager KNX TXD503 Motion detector TXD503

Description

Presence/motion detector KNX 360°, installation, detection Ø20m.KNX presence/motion detector Installation for automatic transmission of switching commands for lighting and scene control via the KNX bus, depending on heat movement/ambient brightness and is suitable for installation in hollow-room ceilings indoors.
Main functions: Increased capturing sensitivity in the central presence detection range, adjustable response brightness and daylight regulation, adjustable delay time, Master/slave function.
Note: An optional IR hand-held transmitter can control different operating modes (e.g. on/OFF).

This text is machine translated.
