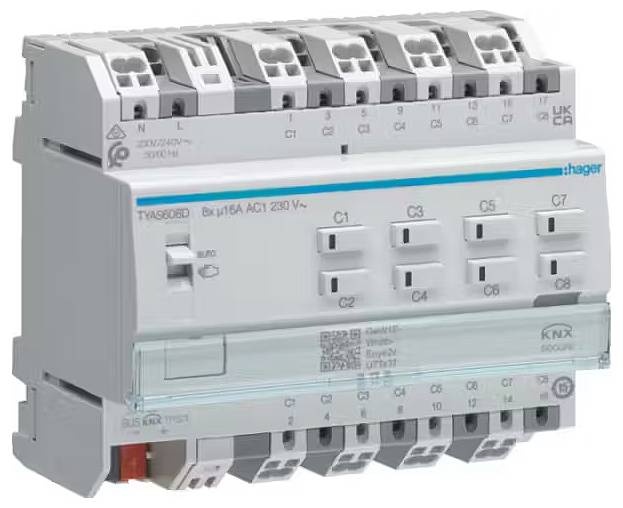

Hager KNX TYAS608D Blinds actuator
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Blinds actuator
- Series
KNX
- Max. switching capacity
2300 W
- Operating voltage
230 V
2300 W
- Data transfer (Smart Home)
Wired
- Channels
8
- Mounting type
DIN rail
- Factory colour
Multicolour
- Hub
Not required, optional for remote access
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3360101 Hager KNX TYAS608D Blinds actuator
User & Safety Instructions
User & Safety Instructions 3360101 Hager KNX TYAS608D Blinds actuator
Information
Information 3360101 Hager KNX TYAS608D Blinds actuator
Description
Switch/blind actuator 8/4-way KNX Secure, 16A, C-Last.KNX Secure switching output for switching 8 socket/illumination outputs or 4 blinds.
Functions: Per output manual operation (lockable, without necessary bus connection), LED switching status display, operating hours counter and diagnostics function.
Functions for lighting per channel: ON/OFF, time switching, safety-off, forced control, lock/logic/preset or delay function, Scene call-up (64 per channel), switching function for time or continuous function.
Functions for blinds: Travel command UP/DOWN/stop, panel angle, percentage control (driving a predefined position), sun protection function (in connection with external sensor brightness control), alarm function (control at the defined position), safety departure, 64 scene function per channel, logic block for controlling the output as a function of logic operation, preset/lock function, forced control.
Labelling option directly on the device and possibility of remote firmware updates via ETS APP.
This text is machine translated.
Functions: Per output manual operation (lockable, without necessary bus connection), LED switching status display, operating hours counter and diagnostics function.
Functions for lighting per channel: ON/OFF, time switching, safety-off, forced control, lock/logic/preset or delay function, Scene call-up (64 per channel), switching function for time or continuous function.
Functions for blinds: Travel command UP/DOWN/stop, panel angle, percentage control (driving a predefined position), sun protection function (in connection with external sensor brightness control), alarm function (control at the defined position), safety departure, 64 scene function per channel, logic block for controlling the output as a function of logic operation, preset/lock function, forced control.
Labelling option directly on the device and possibility of remote firmware updates via ETS APP.
This text is machine translated.
