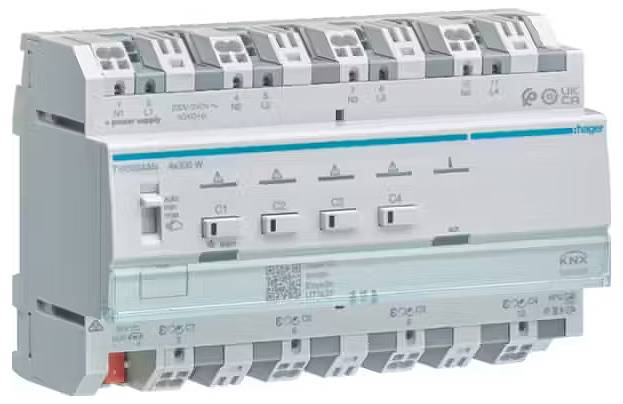

Hager KNX TYAS664AN Dimmer actuator
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Dimmer actuator
- Series
KNX
- Max. switching capacity
1200 W
- Operating voltage
30 V
1200 W
- Data transfer (Smart Home)
Wired
- Channels
4
- Mounting type
DIN rail
- Factory colour
Multicolour
- Hub
Not required, optional for remote access
- Features
Dimmer function
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3360114 Hager KNX TYAS664AN Dimmer actuator
User & Safety Instructions
User & Safety Instructions 3360114 Hager KNX TYAS664AN Dimmer actuator
Description
Universal dimming actuator 4-fold KNX Secure, 4x300W, ESL/LED, combinable.KNX Secure universal dimming actuator for switching/dimming and for automatic detection of the load start (auto detect method) and for optimizing the dimming range (Easydetect method) by pressing a button on the external sensor, on the device or via an object.
Professional mode for selecting the modes on the device or via bus access. For dimming of dimmable LED and energy-saving bulbs, light bulbs, high-voltage halogen lamps and low-voltage halogen lamps with conventional or electronic transformer. The device converts the bus information into appropriate commands.
Functions: Dimming, switching, forced, time, switch-off pre-warning, Scene call-up (64 per channel, each with own start-up time), per dimmer output with manual control (lockable) and LED switching status display. The dimming channels can be combined in various combinations to increase power. With protection against overheating, overload and short circuit. Additionally, the device detects the current flow of the illuminant via a status object.
Labelling option directly on the device and possibility of remote firmware updates via ETS APP.
This text is machine translated.
Professional mode for selecting the modes on the device or via bus access. For dimming of dimmable LED and energy-saving bulbs, light bulbs, high-voltage halogen lamps and low-voltage halogen lamps with conventional or electronic transformer. The device converts the bus information into appropriate commands.
Functions: Dimming, switching, forced, time, switch-off pre-warning, Scene call-up (64 per channel, each with own start-up time), per dimmer output with manual control (lockable) and LED switching status display. The dimming channels can be combined in various combinations to increase power. With protection against overheating, overload and short circuit. Additionally, the device detects the current flow of the illuminant via a status object.
Labelling option directly on the device and possibility of remote firmware updates via ETS APP.
This text is machine translated.
