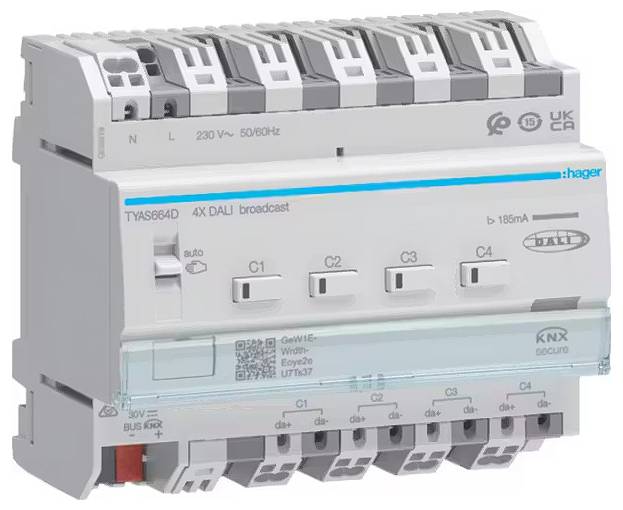

Hager KNX TYAS664D Dimmer actuator
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Dimmer actuator
- Series
KNX
0.9 W
- Data transfer (Smart Home)
Wired
- Channels
4
- Mounting type
DIN rail
- Factory colour
Multicolour
- Width
300 mm
- Height
200 mm
- Depth
400 mm
- Dim
(W x H x D) 300 x 200 x 400 mm
- Hub
Not required, optional for remote access
- Weight
280 g
- Features
Dimmer function
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3360520 Hager KNX TYAS664D Dimmer actuator
User & Safety Instructions
User & Safety Instructions 3360520 Hager KNX TYAS664D Dimmer actuator
Information
Information 3360520 Hager KNX TYAS664D Dimmer actuator
Description
DALI actuator 4-way, KNS Secure, easy, Broadcast, RGB(T)W.DALI Broadcast actuator 4-way (REG) KNX Secure for integrating devices with DALI interface into the KNX system. The DALI system controls and visualizes a maximum of 94 DALI devices and adjusts the color temperature and color temperature for lights with DALI Device Type 8 for Tunable White and Colour Control in accordance with IEC 62386-209.
Rail-mounted unit with mains connection, bus connection via KNX connection terminal, load connections with plug-in terminals, sliding switch auto/min/max, illuminated keys for dimming mode and programming key, control key for manual operation with status LED, overheating protection indicator LED, short-circuit and overload protection for each output and label field with cover.
In manual operation, the control of the connected DALI devices for commissioning in construction site mode can be performed without the device being supplied or configured with the KNX bus voltage. For this purpose, the devices connected to the DALI system are controlled centrally via broadcast commands.
Function: Switch ON/OFF, relative or absolute dimming (dimming value), time switch, safety off, forced control, switching duration/time mode, Operating hours counter, logic Block, device diagnostics , setting of minimum and maximum dimming values, lock/logic/preset/delay/or scene functions.
Note: Commissioning with easytool or ETS (as of version 5) is possible.
This text is machine translated.
Rail-mounted unit with mains connection, bus connection via KNX connection terminal, load connections with plug-in terminals, sliding switch auto/min/max, illuminated keys for dimming mode and programming key, control key for manual operation with status LED, overheating protection indicator LED, short-circuit and overload protection for each output and label field with cover.
In manual operation, the control of the connected DALI devices for commissioning in construction site mode can be performed without the device being supplied or configured with the KNX bus voltage. For this purpose, the devices connected to the DALI system are controlled centrally via broadcast commands.
Function: Switch ON/OFF, relative or absolute dimming (dimming value), time switch, safety off, forced control, switching duration/time mode, Operating hours counter, logic Block, device diagnostics , setting of minimum and maximum dimming values, lock/logic/preset/delay/or scene functions.
Note: Commissioning with easytool or ETS (as of version 5) is possible.
This text is machine translated.
