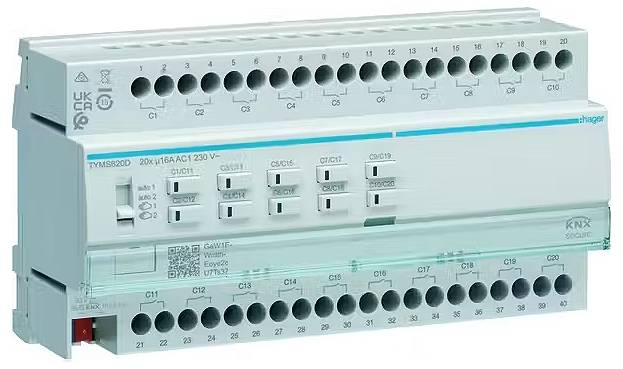

Hager KNX TYMS620D Blinds actuator
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Blinds actuator
- Series
KNX
- Used at
Indoors
- Data transfer (Smart Home)
Wired
- Mounting type
DIN rail
- Factory colour
Multicolour
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Features
Motor-operated
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3359797 Hager KNX TYMS620D Blinds actuator
User & Safety Instructions
User & Safety Instructions 3359797 Hager KNX TYMS620D Blinds actuator
Description
Switch/blind actuator 20/10-way KNX Secure, 16A, C-Last.Switch/blind actuator (REG) KNX Secure for switching independent loads or for controlling drives with potential-free NO contacts and can be connected multi-phase.
DIN-rail mounting unit with integrated bus coupler, bus connection via KNX connection terminal, sliding switch auto/hand, hand-held buttons actuator channel with status LED (default, short circuit, overload), programming key with integrated LED, labeling field and screw terminals for input and output voltages. No external power supply needed.
Switch functions: ON / OFF, time switching, safety off, forced control, switching function for time or continuous function, operating hours counter, device diagnosis, lock/ logic/ preset/ delay or scene functions (64 scenes).
Functions Shutter/blind drive: UP/DOWN/stop, leaf position/stop, percentage control for driving a pre-defined position, sun protection function (e.g. via external sensor), alarm function for defined position, safety lock, device diagnosis, lock/logic/preset or scene functions (64 scenes).
Note: The device can be programmed with the ETS (version 4 and higher). Observe installation instructions for actuator manufacturers.
This text is machine translated.
DIN-rail mounting unit with integrated bus coupler, bus connection via KNX connection terminal, sliding switch auto/hand, hand-held buttons actuator channel with status LED (default, short circuit, overload), programming key with integrated LED, labeling field and screw terminals for input and output voltages. No external power supply needed.
Switch functions: ON / OFF, time switching, safety off, forced control, switching function for time or continuous function, operating hours counter, device diagnosis, lock/ logic/ preset/ delay or scene functions (64 scenes).
Functions Shutter/blind drive: UP/DOWN/stop, leaf position/stop, percentage control for driving a pre-defined position, sun protection function (e.g. via external sensor), alarm function for defined position, safety lock, device diagnosis, lock/logic/preset or scene functions (64 scenes).
Note: The device can be programmed with the ETS (version 4 and higher). Observe installation instructions for actuator manufacturers.
