Hager KNX TYMS646R Thermal actuator
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Thermal actuator
- Series
KNX
- Used at
Indoors
- Data transfer (Smart Home)
Wired
- Channels
6
- Mounting type
DIN rail
- Factory colour
Multicolour
- Width
100 mm
- Height
50 mm
- Depth
150 mm
- Dim
(W x H x D) 100 x 50 x 150 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
230 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3359798 Hager KNX TYMS646R Thermal actuator
User & Safety Instructions
User & Safety Instructions 3359798 Hager KNX TYMS646R Thermal actuator
Information
Information 3359798 Hager KNX TYMS646R Thermal actuator
Description

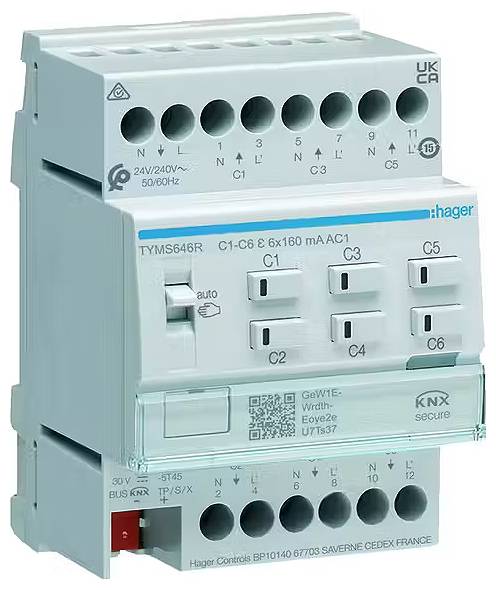

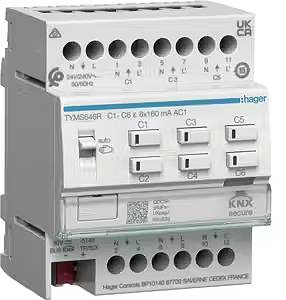

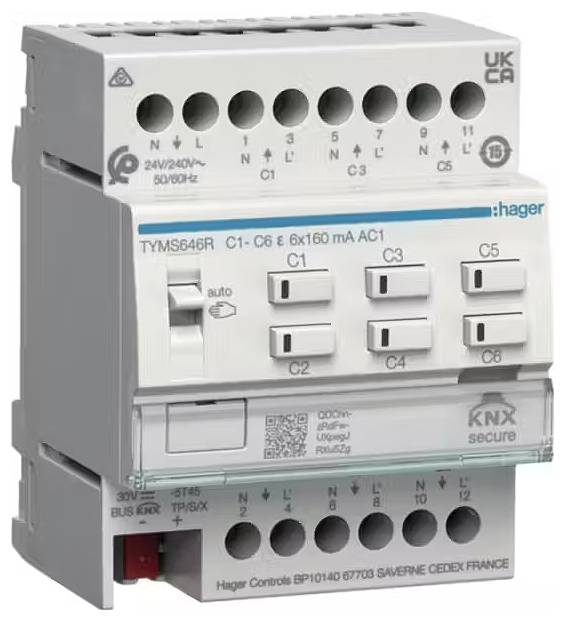

Heating actuator 6-way KNX Secure, with controller for 24/230V actuators, triac.Heating actuator (REG) KNX Secure with electronic outputs (triac) for noiseless control of electro-thermal actuators for heating systems or cooling ceilings.
Rail-mounted device with integrated bus coupler, bus connection via KNX connection terminal, sliding switch auto/manual, 6 hand buttons for up/down per actuator channel with status LED (default, short circuit, overload), programming key with integrated LED, labeling field and screw terminals for input and output voltages.
Features: Output voltage for compatible valves 230 V AC or 24 V AC, temperature controller for heating and cooling, with 12 temperature controllers for controlling up to 12 independent zones, on/off or PWM-control. Manual operation using sliding switch on channels with 0 % - 50% - 100%. Diagnostics function via output with multi-colored LED, time/date programmable valve protection/pump seat protection and forced position. Below values for summer/winter operation 2 x Logic block Setpoints that can be parameterized for normal, forced or emergency operation. Cyclic monitoring/detection of the input signals of thermostats (monitoring time approx. 45 min). In the event of a thermostat fault, the triac output is set in emergency mode.
Note: The device can be programmed using the ETS (version 5 and higher). Actuators with the same operating voltage must be connected to all actuator channels. Observe the installation instructions for the manufacturer of heating systems and actuators.
This text is machine translated.
Rail-mounted device with integrated bus coupler, bus connection via KNX connection terminal, sliding switch auto/manual, 6 hand buttons for up/down per actuator channel with status LED (default, short circuit, overload), programming key with integrated LED, labeling field and screw terminals for input and output voltages.
Features: Output voltage for compatible valves 230 V AC or 24 V AC, temperature controller for heating and cooling, with 12 temperature controllers for controlling up to 12 independent zones, on/off or PWM-control. Manual operation using sliding switch on channels with 0 % - 50% - 100%. Diagnostics function via output with multi-colored LED, time/date programmable valve protection/pump seat protection and forced position. Below values for summer/winter operation 2 x Logic block Setpoints that can be parameterized for normal, forced or emergency operation. Cyclic monitoring/detection of the input signals of thermostats (monitoring time approx. 45 min). In the event of a thermostat fault, the triac output is set in emergency mode.
Note: The device can be programmed using the ETS (version 5 and higher). Actuators with the same operating voltage must be connected to all actuator channels. Observe the installation instructions for the manufacturer of heating systems and actuators.
This text is machine translated.
