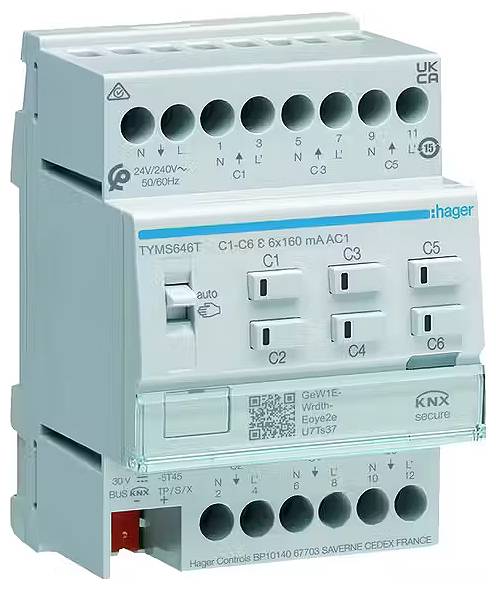

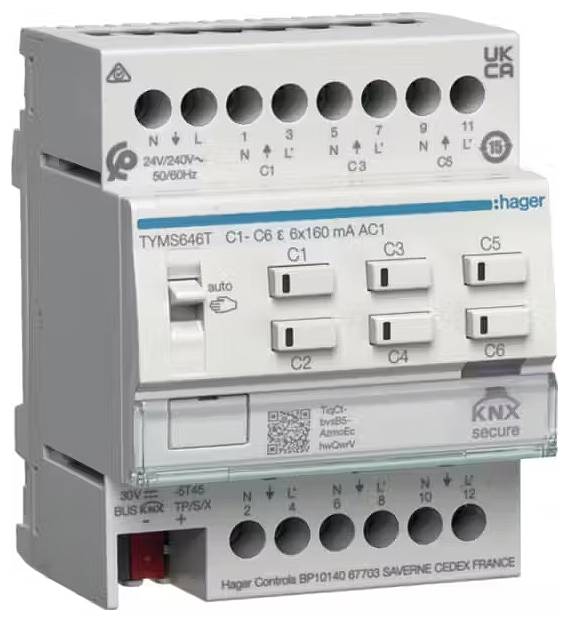

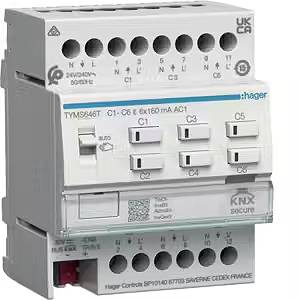

Hager KNX TYMS646T Thermal actuator
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Thermal actuator
- Series
KNX
- Data transfer (Smart Home)
Wired
- Channels
6
- Mounting type
DIN rail
- Factory colour
Multicolour
- Hub
Not required, optional for remote access
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3359799 Hager KNX TYMS646T Thermal actuator
User & Safety Instructions
User & Safety Instructions 3359799 Hager KNX TYMS646T Thermal actuator
Information
Information 3359799 Hager KNX TYMS646T Thermal actuator
Description
Heating actuator 6-way KNX Secure for 24/230V actuators, triac.Heating actuator (REG) KNX Secure with electronic outputs (triac) for noiseless control of electro-thermal actuators for heating systems or cooling ceilings.
Rail-mounted device with integrated bus coupler, bus connection via KNX connection terminal, sliding switch auto/manual, 6 hand buttons for up/down per actuator channel with status LED (default, short circuit, overload), programming key with integrated LED, labeling field and screw terminals for input and output voltages.
Features: Output voltage for compatible valves 230 V AC or 24 V AC, temperature controller for heating and cooling, with 12 temperature controllers for controlling up to 12 independent zones, on/off or PWM-control. Manual operation using sliding switch on channels with 0 % - 50% - 100%. Diagnostics function via output with multi-colored LED, time/date programmable valve protection/pump seat protection and forced position. Below values for summer/winter operation 2 x Logic block Setpoints that can be parameterized for normal, forced or emergency operation. Cyclic monitoring/detection of the input signals of thermostats (monitoring time approx. 45 min). In the event of a thermostat fault, the triac output is set in emergency mode.
Note: The device can be programmed using the ETS (version 5 and higher). Actuators with the same operating voltage must be connected to all actuator channels. Observe the installation instructions for the manufacturer of heating systems and actuators.
