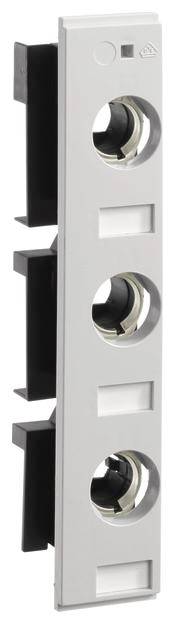

Hager L063L1 NEOZED fuse holder Fuse size = D02 63 A 400 V 1 pc(s)
EAN:
Part number:
Item no:
Product type
NEOZED fuse holder
Fuse size
D02
Number of pins
3
Nominal current - rounded value
63 A
Factory colour
Multicolour
Datasheet (PDF)
Technical specifications
- Product type
NEOZED fuse holder
- Fuse size
D02
- Number of pins
3
- Factory colour
Multicolour
- Dim
(W x H x D) 36 x 201 x 35 mm
- Content
1 pc(s)
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Size
D02
- Nominal voltage
400 V
- Width
36 mm
- Height
201 mm
- Depth
35 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3198925 Hager L063L1 NEOZED fuse holder Fuse size = D02 63 A 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3198925 Hager L063L1 NEOZED fuse holder Fuse size = D02 63 A 400 V 1 pc(s)
Description
Busbar safety fuse lower section D02 E18 63A 3-pin, 60mm busbar connection terminal Busbar fuse bottom for three D02 fuses, for 60 mm busbar distance, height 20 and 30 mm, as in the system univers. Secure with screw cap. In max. 63 A. Busbar latching for 5 mm thick copper rails, detachable for 10 mm thickness. Labelling option integrated on the device. Frame terminals up to 16 mm² fine-wired and up to 25 mm² one and multi-wired. Device width 36 mm. Corresponds to the standards DIN EN 60269-1 and DIN VDE 0636-31.
