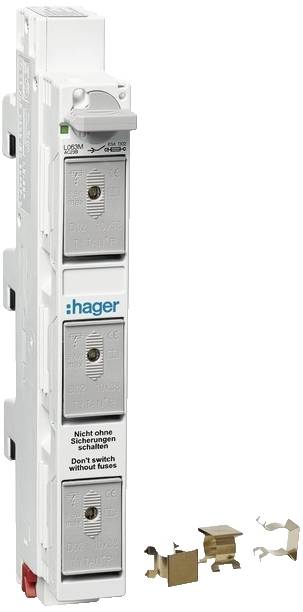

Hager L063M Circuit breaker Fuse size = D02 3-pin 63 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Circuit breaker
Fuse size
D02
Number of pins
3
Nominal current - rounded value
63 A
Factory colour
Multicolour
Datasheet (PDF)
Technical specifications
- Product type
Circuit breaker
- Fuse size
D02
- Number of pins
3
- Factory colour
Multicolour
- Dim
(W x H x D) 27 x 80 x 77 mm
- Content
1 pc(s)
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Switch-off capacity
50 kA
- Width
27 mm
- Height
80 mm
- Depth
77 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3199603 Hager L063M Circuit breaker Fuse size = D02 3-pin 63 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3199603 Hager L063M Circuit breaker Fuse size = D02 3-pin 63 A 1 pc(s)
Description
Circuit breakers for D02 63A fuses 3-pin 60mm rail Mounting on 60 mm busbar system DIN VDE 0638, DIN EN 60947-3, 400 V AC, 63 A, AC22B, 50 kA with message system for fuse failure. Screw-cap plug technology, offers factory-side, permanent contact pressure. No contact loosening during the operation Lockable with padlock, sealable, manual ON/OFF switching detachable safety plug with finger protection. Equipped with D02 sleeve pass insert in accordance with D0 fuse insert requirement in accordance with 1 to 63A.
