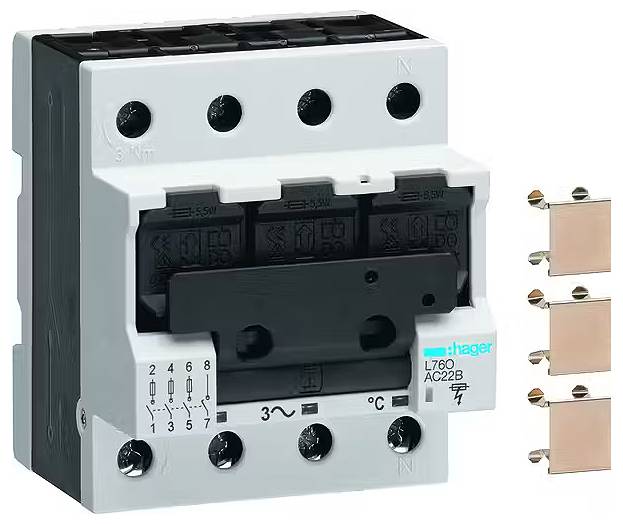

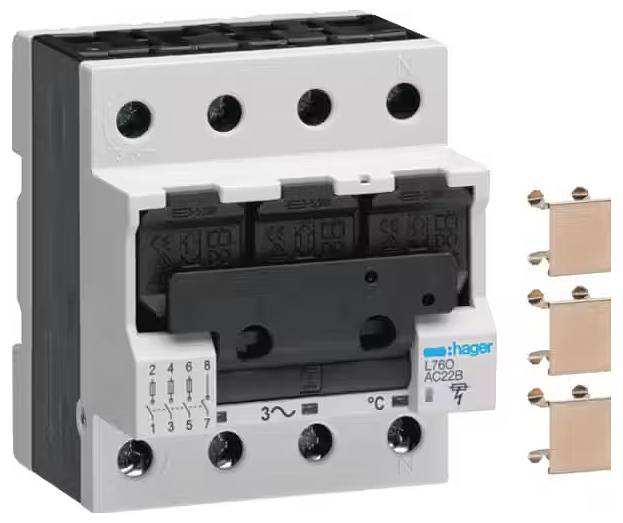

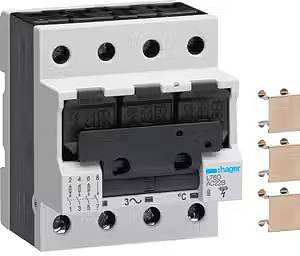

Hager L76O Isolator switch sealable 63 A 400 V 1 pc(s)
EAN:
Part number:
Item no:
Product type
Isolator switch
Mounting type
DIN rail
Switching voltage
400 V
Switching current (max.)
63 A
Switch/button features
sealable
Datasheet (PDF)
Technical specifications
- Product type
Isolator switch
- Switch/button features
sealable
- Functions
latch
- Mounting type
DIN rail
- Switch position
Off/On
- Print motif
ON/OFF
- Number of pins
3
- Connection
Jack connector
- Switching voltage
400 V
- Switching current (max.)
63 A
- Length
150 cm
- Width
50 mm
- Height
100 mm
- Content
1 pc(s)
- Type
L76O
- Dim
(L x W x H) 150 cm x 50 mm x 100 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3358495 Hager L76O Isolator switch sealable 63 A 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3358495 Hager L76O Isolator switch sealable 63 A 400 V 1 pc(s)
Description
Circuit-breaker switch for fuses D02 63A 3-pin + N rail-mounted FI fuse.Switch disconnector DO2 with optical indicators (fuse triggered = red), lockable in OFF position, SEALABLE in ON/OFF position and thermal monitoring (overheating message), plug-in technology without screw cap, manual ON/OFF switch and removable fuse plugs with finger protection.
