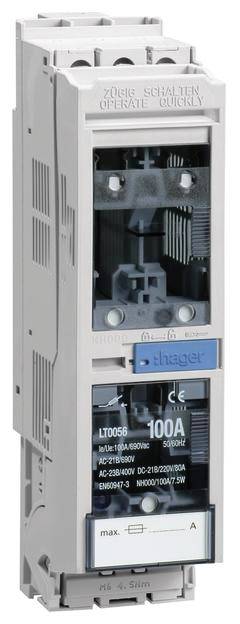

Hager LT0056 Switch disconnector fuse Suitable for Fuse size 000 - 4 Fuse size = 000 100 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch disconnector fuse
Fuse size
000
Number of pins
3
Nominal current - rounded value
100 A
Factory colour
Multicolour
Datasheet (PDF)
Technical specifications
- Product type
Switch disconnector fuse
- Fuse size
000
- Number of pins
3
- Factory colour
Multicolour
- Dim
(W x H x D) 53 x 206 x 106 mm
- Content
1 pc(s)
- Nominal current
100 A
- Nominal current - rounded value
100 A
- Suitable for
Fuse size 000 - 4
- Width
53 mm
- Height
206 mm
- Depth
106 mm
- Weight
600 g
1000 V
3
IP3X
690 V
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3198876 Hager LT0056 Switch disconnector fuse Suitable for Fuse size 000 - 4 Fuse size = 000 100 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3198876 Hager LT0056 Switch disconnector fuse Suitable for Fuse size 000 - 4 Fuse size = 000 100 A 1 pc(s)
Description
Fuse switch disconnector LT NH000/60mm 100A, frame terminal, outlet below. NH000 fuse switch disconnectors for busbar mounting distance of 60mm according to DIN EN 60947-3 (VDE 0660-107) and suitable for NH fuse links according to DIN 43620/1. Comprising of 3-pin switch part and lead-sealable grip insert, contact protection on the handle, with movable clear window for voltage testing, all-pole switching, for mounting on CU busbar distance of 60 mm, lower junction, without additional aperture.
