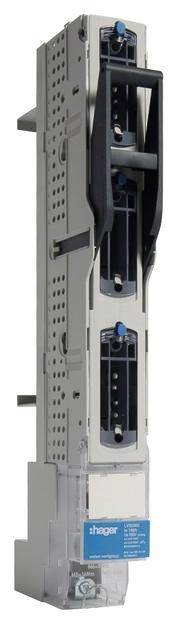

Hager LVS0060RPX Hager LVS0060RPX fuse load switching strip NH00 60 mm 3-pin direct connection Circuit breaker switch mo
EAN:
Part number:
Item no:
Product type
Circuit breaker switch module
Nominal voltage
690 V
Number of pins
3
Dim
(L x W x H) 400 cm x 100 mm x 100 mm
Nominal current
160 A
Datasheet (PDF)
Technical specifications
- Nominal voltage
690 V
- Product type
Circuit breaker switch module
- Number of pins
3
- Dim
(L x W x H) 400 cm x 100 mm x 100 mm
- Nominal current
160 A
- Nominal current - rounded value
160 A
- Content
1 pc(s)
- Width
100 mm
- Height
100 mm
- Length
400 cm
- Depth
400 mm
- Weight
1230 g
Fuse switch disconnector
160 A
3
100 kA
Screw connection
690 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3197993 Hager LVS0060RPX Hager LVS0060RPX fuse load switching strip NH00 60 mm 3-pin direct connection Circuit breaker switch mo
User & Safety Instructions
User & Safety Instructions 3197993 Hager LVS0060RPX Hager LVS0060RPX fuse load switching strip NH00 60 mm 3-pin direct connection Circuit breaker switch mo
Description
NH Safety fuse load bar LV NH00 60mm 3-pin direct connection. NH00-Fuse-Load bar 160 A, for Busbar mounting distance 60 mm. Complies with DIN EN 60947-3 and IEC 60947-3, suitable for NH fuse links as per DIN 43620-1. Consisting of 3-pin switch bar lower section and lead-sealable handle insert, contact protection at the handle, with sliding transparent window for voltage testing, all-pole switching, with frame terminal 95 mm², with rotating mounting hook.
This text is machine translated.
