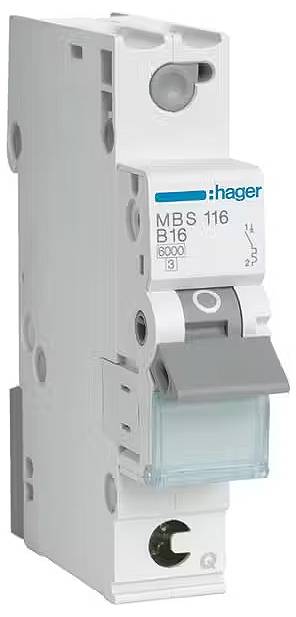

Hager MBS116 MBS116 Circuit breaker 1-pin 16 A
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
1
Release characteristics
B
Nominal current - rounded value
16 A
Nominal current
16 A
Datasheet (PDF)
Technical specifications
- Product type
Circuit breaker
- Number of pins
1
- Release characteristics
B
- Nominal current - rounded value
16 A
- Nominal current
16 A
- Factory colour
Multicolour
- Dim
(W x H x D) 87.0000 x 18.0000 x 73.0000 mm
- Content
1 pc(s)
- Width
87.0000 mm
- Height
18.0000 mm
- Depth
73.0000 mm
- Weight
0.09
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3360576 Hager MBS116 MBS116 Circuit breaker 1-pin 16 A
User & Safety Instructions
User & Safety Instructions 3360576 Hager MBS116 MBS116 Circuit breaker 1-pin 16 A
Information
Information 3360576 Hager MBS116 MBS116 Circuit breaker 1-pin 16 A
Description
Circuit breaker switch 1-pin 6kA B-characteristic 16A Quick Connect 1 Module.Circuit breaker with QuickConnect terminal according to DIN EN 60898-1 (VDE 0641 Part 11), at exit up to 16A and at access for the rails up to 63A, with time-delayed thermal trip for overload protection and electromagnetic trigger for short-circuit protection. Suitable for add-on installation of additional devices. Labelling possibility directly at the device and individual removal from the phase-rail network by unlocking the top-hat rail quick mounting.
This text is machine translated.
