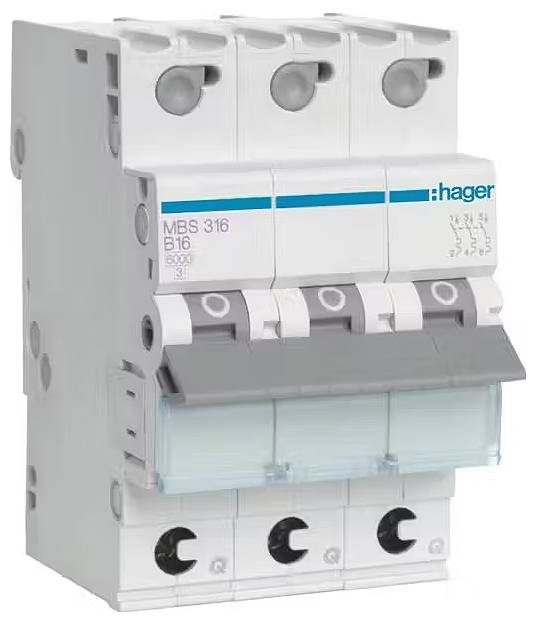

Hager MBS316 Circuit breaker 3-pin 16 A
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
3
Release characteristics
B
Nominal current - rounded value
16 A
Nominal current
16 A
Datasheet (PDF)
Number
Total (€ 32.76 / piece)
€ 32.76
plus VAT.
14-day return policy included
Technical specifications
- Product type
Circuit breaker
- Number of pins
3
- Release characteristics
B
- Nominal current - rounded value
16 A
- Nominal current
16 A
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3360578 Hager MBS316 Circuit breaker 3-pin 16 A
User & Safety Instructions
User & Safety Instructions 3360578 Hager MBS316 Circuit breaker 3-pin 16 A
Information
Information 3360578 Hager MBS316 Circuit breaker 3-pin 16 A
Description
Circuit breaker switch 3-pin 6kA B-characteristic 16A Quick Connect 3 Module.Circuit breaker with QuickConnect terminal according to DIN EN 60898-1 (VDE 0641 Part 11), at exit up to 16A and at access for the rails up to 63A, with time-delayed thermal trip for overload protection and electromagnetic trigger for short-circuit protection. Suitable for add-on installation of additional devices. Labelling possibility directly at the device and individual removal from the phase-rail network by unlocking the top-hat rail quick mounting.
