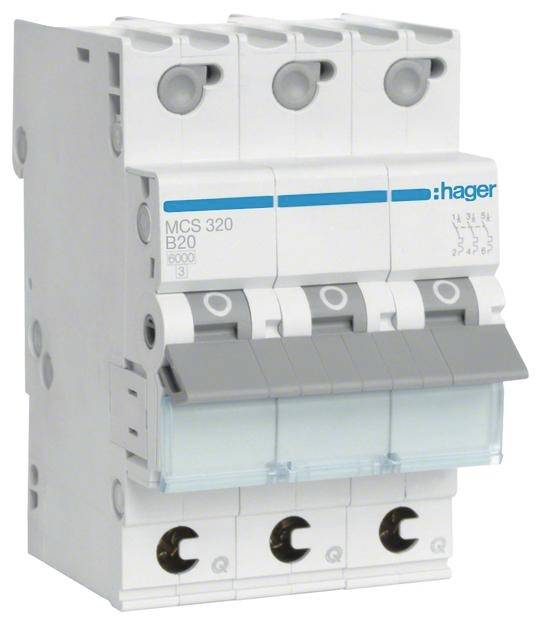

Hager MCS320 MCS320 Circuit breaker 3-pin 20 A 400 V
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
3
Nominal current - rounded value
20 A
Nominal current
20 A
Factory colour
Multicolour
Datasheet (PDF)
Technical specifications
- Product type
Circuit breaker
- Number of pins
3
- Nominal current - rounded value
20 A
- Nominal current
20 A
- Factory colour
Multicolour
- Dim
(W x H x D) 90.0000 x 56.0000 x 75.0000 mm
- Content
1 pc(s)
- Nominal voltage
400 V
- Width
90.0000 mm
- Height
56.0000 mm
- Depth
75.0000 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3043293 Hager MCS320 MCS320 Circuit breaker 3-pin 20 A 400 V
User & Safety Instructions
User & Safety Instructions 3043293 Hager MCS320 MCS320 Circuit breaker 3-pin 20 A 400 V
Description
Line circuit breaker 3-pin 6kA C-characteristic 20A QuickConnect 3 Modules. Circuit breaker switch with QuickConnect-clamp according to DIN EN 60898-1 (VDE 0641 part 11), at the outlet up to 16A and at the access for the busbar up to 63A, with time-delayed thermal trigger for overload protection and electromagnetic trigger for short-circuit protection. Suitable for add-on installation of additional devices. Labelling possibility directly at the device and individual removal from the phase-rail network by unlocking the top-hat rail quick mounting.
