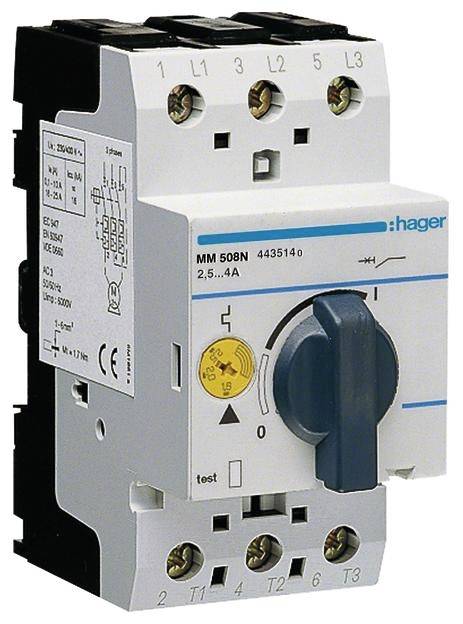

Hager MM508N MM508N Motor surge protector switch 230 V, 400 V 1 pc(s)
EAN:
Part number:
Item no:
Product type
Motor surge protector switch
Switching voltage
230 V
400 V
Connection
Screws
Content
1 pc(s)
Type
MM508N
Datasheet (PDF)
Technical specifications
- Product type
Motor surge protector switch
- Connection
Screws
- Switching voltage
230 V
400 V
- Content
1 pc(s)
- Type
MM508N
45
140 mm
75 mm
1.5 kW
4 A
3
690-690 V
2.5-4 A
IP20
Screw connection
Turn button
Built-in device fixed built-in technique
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3194106 Hager MM508N MM508N Motor surge protector switch 230 V, 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3194106 Hager MM508N MM508N Motor surge protector switch 230 V, 400 V 1 pc(s)
Description
Motor protection switch size 1, 2.5-4.0A 2.5m. Motor protection switch according to VDE 0660 and VDE 0113, with phase failure sensitivity, adjustable overload release and magnetic short-circuit release. Thermal magnetic switch with controllable bi-metal relay, auxiliary contacts and under-voltage trigger can be installed.
