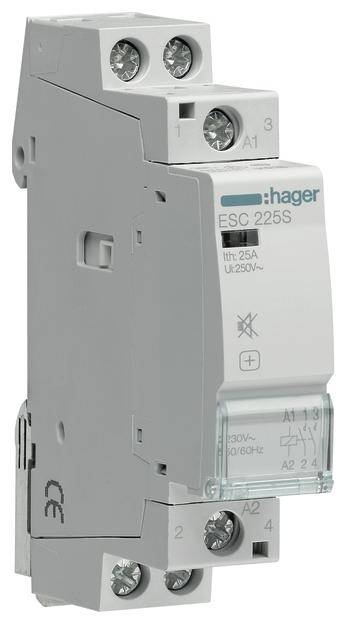

Hager Sonstiges Relais Remote switch 2 makers 1990 VA 230 V + surge protection Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
Nominal voltage
230 V
Power
1990 VA
Packaging type
Piece
Type
Sonstiges Relais
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Remote switch
- Type
Sonstiges Relais
- Contact type
2 makers
- Auxiliary contact type
2 makers
- Nominal voltage
230 V
- Control voltage (max.)
230 V AC
- Control voltage range
230 V AC (max)
- Switching voltage (max.)
230 V AC
- Max. switching capacity
1900 W
- Permanent current (max.)
25 A
1990 VA
- Features
+ surge protection
IP2X
- Width
25.0000 mm
- Height
80.0000 mm
- Depth
60 mm
- Dim
(W x H x D) 25.0000 x 80.0000 x 60 mm
- Content
1 pc(s)
60 mm
230-230 V
AC
IP2X
FALSE
0
2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3194554 Hager Sonstiges Relais Remote switch 2 makers 1990 VA 230 V + surge protection Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3194554 Hager Sonstiges Relais Remote switch 2 makers 1990 VA 230 V + surge protection Piece 1 pc(s)
Description
Installation protection hum-free 25A 2S 230V. Bumum-free protection in accordance with DIN EN 61095 (VDE 0637-3) with indicator of position through display window, integrated labeling field and suitable for subsequent installation of additional equipment. DC magnet system with protective circuit against overvoltage and to limit interference voltage peak, for continuous hum-free operation and ensures low switching noise. Note: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to each second device.
