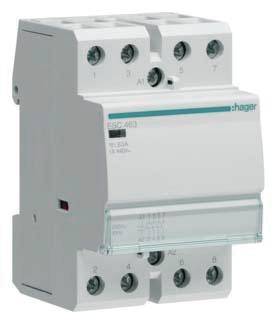

Hager Sonstiges Relais Remote switch 4 makers 6500 W 230 V Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
4-pin
Nominal voltage
230 V
Power
6500 W
Packaging type
Piece
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Remote switch
- Type
Sonstiges Relais
- No. of pins
4-pin
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Nominal voltage
230 V
- Control voltage (max.)
230 V AC
- Control voltage range
230 V AC (max)
- Switching voltage (max.)
400 V AC
- Max. switching capacity
6500 W
- Permanent current (max.)
63 A
6500 W
- Mounting type
Fixed
IP2X
- Width
82.0000 mm
- Height
57.0000 mm
- Depth
60 mm
- Dim
(W x H x D) 82.0000 x 57.0000 x 60 mm
- Content
1 pc(s)
- Weight
0.35
60 mm
400-400 V
AC
IP2X
TRUE
0
4
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3194567 Hager Sonstiges Relais Remote switch 4 makers 6500 W 230 V Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3194567 Hager Sonstiges Relais Remote switch 4 makers 6500 W 230 V Piece 1 pc(s)
Description

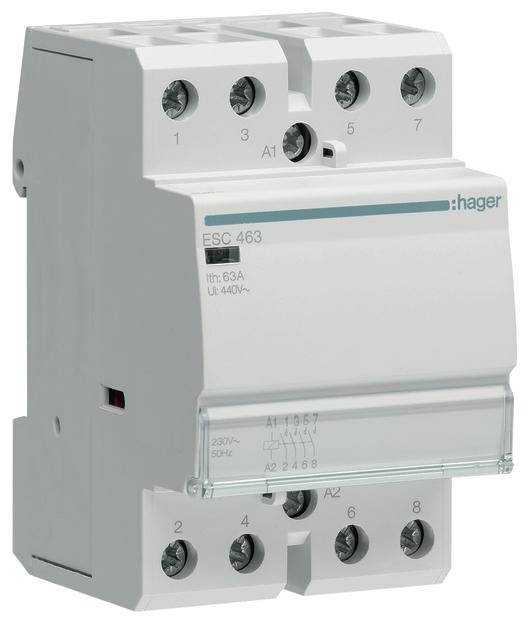

Installation contactor 63A 4 normally open contact 230V. Compact contactor according to DIN EN 61095 (VDE 0637-3) with contact position indicator through display window, integrated labeling field and suitable for the additional assembly. Note: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to each second device.
