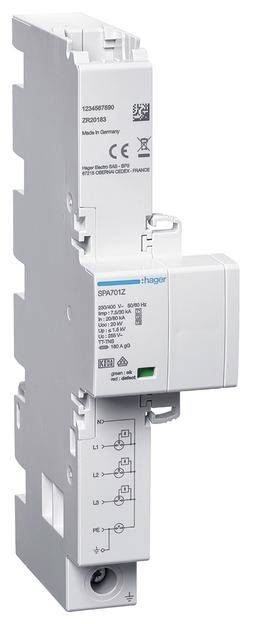

Hager SPA701Z SPA701Z Lightning conductor Surge protection for: 40 mm busbar 7.5 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Lightning conductor
- Surge protection for
40 mm busbar
- Leakage current
7.5 kA
- Nominal voltage
400 V
- Manufacturer part #
SPA701Z
- Factory colour
Multicolour
- Dim
(W x H x D) 54 x 206 x 88 mm
- Width
54 mm
- Height
206 mm
- Depth
88 mm
- Content
1 pc(s)
- Weight
0.65
Busbar
4
Other
255 V
400 V
Optic
50 mm²
35 mm²
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2819904 Hager SPA701Z SPA701Z Lightning conductor Surge protection for: 40 mm busbar 7.5 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2819904 Hager SPA701Z SPA701Z Lightning conductor Surge protection for: 40 mm busbar 7.5 kA 1 pc(s)
Description
Kombi conductor T1+T2+T3 4P Imp 7,5kA TT/TNS. Combination conductor for use in the pre-meter area according to VDE-AR-N 4100. Conductor Type 1 + Type 2 to DIN EN 61643-11. Following current-free, encapsulated spark technology. Can be mounted directly on 40 mm busbar system. Compatible with feeder adapter and busbar box for voltage tapping for RFZ and APZ. Optional telecommunication contact can be retrofitted.
