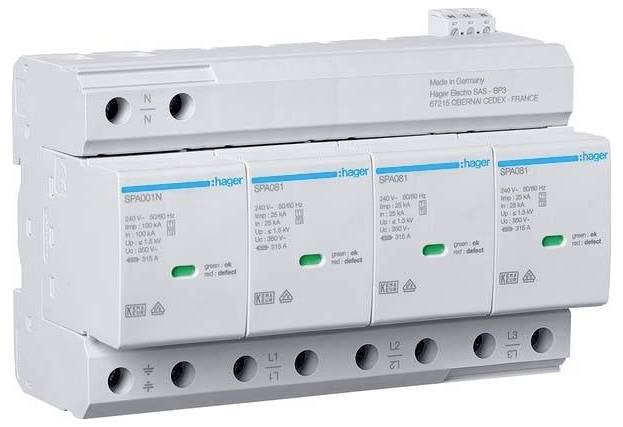

Hager SPA801 SPA801 Lightning conductor 25 kA 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Lightning conductor
- Leakage current
25 kA
- Manufacturer part #
SPA801
- Factory colour
Multicolour
- Content
1 pc(s)
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2893685 Hager SPA801 SPA801 Lightning conductor 25 kA 1 pc(s)
Description
Kombi conductor T1+T2 4P UC 350V IIMP 25kA Up 1.5kV TNS/TT remote cont. Modular combination conductor consisting of a rotating base unit and inserted protection modules with telecommunication contact for monitoring system (potential-free change). Arrester type 1 and type 2 according to DIN EN 61643-11 (VDE 0675-6-11). Simple, tool-free change of protective module by module locking system with function/defect display through marking in the sight window. Encapsulated, non-inflatable spark-range design. Modular DIN 43880 in series, protective module coding, feed-through terminals for all conductor connections.
