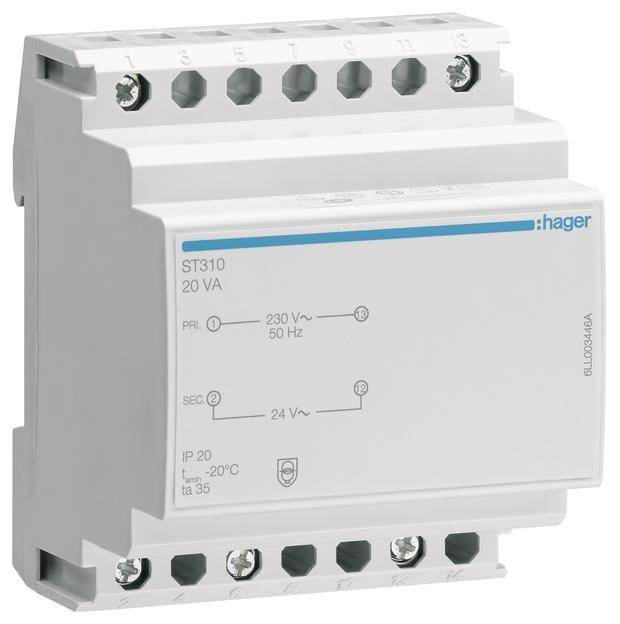

Hager ST310 Safety transformer 24 V 1 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Safety transformer
- Operating voltage
230 V
- Output voltages
24 V
- Max. nominal current
1 A
- Width
70 mm
- Height
58 mm
- Length
85 mm
- Dim
(L x W x H) 85 x 70 x 58 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3200630 Hager ST310 Safety transformer 24 V 1 A
User & Safety Instructions
User & Safety Instructions 3200630 Hager ST310 Safety transformer 24 V 1 A
Description
SAFETY TRANSFORMER 230V/24V, 20VA, 4PLE. Safety transformer with separate primary and secondary windings Protection against short circuit or overload is provided by an integrated thermal switch on the primary side.
