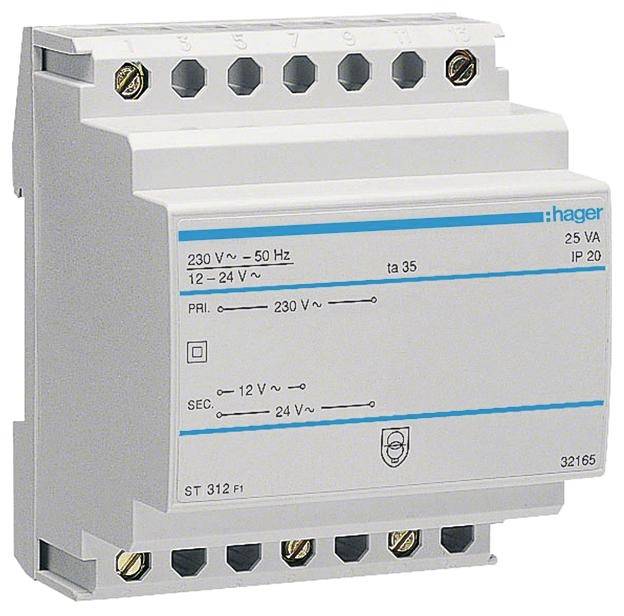

Hager ST312 Safety transformer 12 V, 24 V 3 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Safety transformer
- Operating voltage
230 V
- Output voltages
12 V
24 V
- Max. nominal current
3 A
- Width
70 mm
- Height
58 mm
- Length
85 mm
- Dim
(L x W x H) 85 x 70 x 58 mm
- Factory colour
Multicolour
70
58 mm
FALSE
TRUE
85 m
4
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3198849 Hager ST312 Safety transformer 12 V, 24 V 3 A
User & Safety Instructions
User & Safety Instructions 3198849 Hager ST312 Safety transformer 12 V, 24 V 3 A
Description
Safety transformer 230V / 12V and 24V 25VA 4PLE. Safety transformer with separate primary and secondary windings Protection against short circuit or overload is provided by an integrated thermal switch on the primary side.
