Hager U84LS Hager U84LS cable connection box univers 324x307x149 IP54 SKII laterally empty Cable connection box Multicol
EAN:
Part number:
Item no:
Product type
Cable connection box
Factory colour
Multicolour
Dim
(W x H x D) 305 x 305 x 150 mm
Content
1 pc(s)
Width
305 mm
Datasheet (PDF)
Technical specifications
- Product type
Cable connection box
- Factory colour
Multicolour
- Dim
(W x H x D) 305 x 305 x 150 mm
- Content
1 pc(s)
- Width
305 mm
- Height
305 mm
- Depth
150 mm
- Weight
2100 g
305
305 mm
150 mm
Clamp
IP54
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3197261 Hager U84LS Hager U84LS cable connection box univers 324x307x149 IP54 SKII laterally empty Cable connection box Multicol
User & Safety Instructions
User & Safety Instructions 3197261 Hager U84LS Hager U84LS cable connection box univers 324x307x149 IP54 SKII laterally empty Cable connection box Multicol
Description

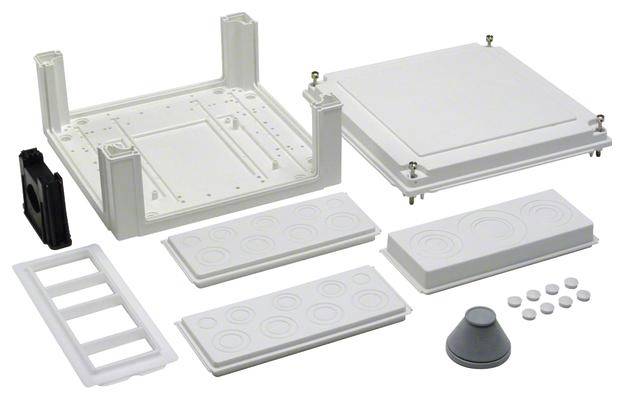

Cable junction box, universal, 324x307x149mm, IP54, SKII, empty on the side. Cable connection box as feeder housing for counters and distribution cabinets IP31/44/54 with 160 mm or 205mm depth. Consisting of housing with plastic cover, fitted with bus bar carrier or empty for optional equipment with terminals or mounting plate. Cable entry by removable flange plates on each side, for inserting the cable from the front. Can be mounted on the side or bottom. Lead-sealable cover. For feeding up to 95qmm on terminals or up to 150qmm on busbar system 40mm-12x5/10mm with 25kA short circuit resistance or 60mm-12 to 30x5/10mm with max. 55kA short circuit resistance. Protection class IP54, protection class II insulated, rated voltage 230/400V/50Hz.
