Hager U84LU Hager U84LU cable connection box univers 324x307x149 IP54 SKII empty below Cable connection box Multicolour
EAN:
Part number:
Item no:
Product type
Cable connection box
Factory colour
Multicolour
Dim
(W x H x D) 307 x 324 x 149 mm
Content
1 pc(s)
Width
307 mm
Datasheet (PDF)
Technical specifications
- Product type
Cable connection box
- Factory colour
Multicolour
- Dim
(W x H x D) 307 x 324 x 149 mm
- Content
1 pc(s)
- Width
307 mm
- Height
324 mm
- Depth
149 mm
- Weight
2100 g
307
324 mm
149 mm
Clamp
IP54
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3197262 Hager U84LU Hager U84LU cable connection box univers 324x307x149 IP54 SKII empty below Cable connection box Multicolour
User & Safety Instructions
User & Safety Instructions 3197262 Hager U84LU Hager U84LU cable connection box univers 324x307x149 IP54 SKII empty below Cable connection box Multicolour
Description

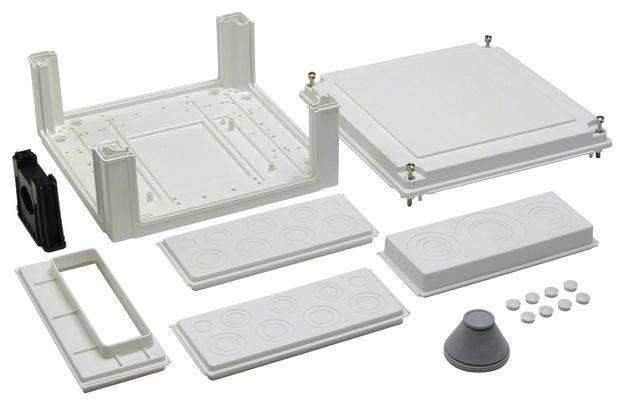

Cable junction box, universal, 324x307x149mm, IP54, SKII, bottom empty. Cable connection box as feeder housing for counters and distribution cabinets IP31/44/54 with 160 mm or 205mm depth. Consisting of housing with plastic cover, fitted with bus bar carrier or empty for optional equipment with terminals or mounting plate. Cable entry by removable flange plates on each side, for inserting the cable from the front. Can be mounted on the side or bottom. Lead-sealable cover. For feeding up to 95qmm on terminals or up to 150qmm on busbar system 40mm-12x5/10mm with 25kA short circuit resistance or 60mm-12 to 30x5/10mm with max. 55kA short circuit resistance. Protection class IP54, protection class II insulated, rated voltage 230/400V/50Hz.
