Hager UD31B4 Hager UD31B4 component universal 450x250mm REG horizontal 3x12PLE M.PE/N terminal Component Plastic White 1
EAN:
Part number:
Item no:
Product type
Component
Factory colour
White
Dim
(L x W x H) 110 x 250 x 450 mm
Content
1 pc(s)
Material
Plastic
Technical specifications
- Product type
Component
- Factory colour
White
- Dim
(L x W x H) 110 x 250 x 450 mm
- Content
1 pc(s)
- Material
Plastic
- Width
250 mm
- Height
450 mm
- Length
110 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3196893 Hager UD31B4 Hager UD31B4 component universal 450x250mm REG horizontal 3x12PLE M.PE/N terminal Component Plastic White 1
Description

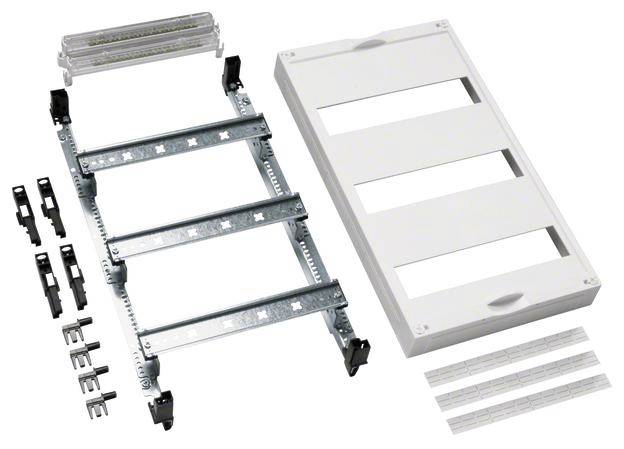

Module, Univ. N, 450x250mm, DIN rail fittings, horizontal, 3x12 PLE, with PE / N terminals. Univers N serial terminals or modular device module with DIN rail for the construction of a low voltage distribution as switching device combination up to 1600A, rated voltage 3AC 690 V /50Hz. Standard sealable protective cover, reinforced by means of gas pressure method with four quick-release bolts each. VDE sign approvals according to DIN EN 61 439 -1-6-1 / 2-4-1 &--2 (VDE 0660 part 600 -1 and -3-3), standard: DIN 43 870.
