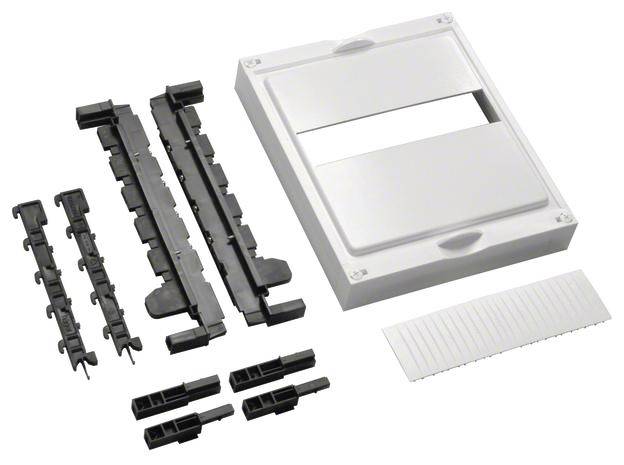

Hager UE21A5 Module universal 300x250mm f. SLS on SAS-System 40mm horizontal Component Pure white (RAL 9010) 4-pin 250 A
EAN:
Part number:
Item no:
Product type
Component
Factory colour
Pure white (RAL 9010)
Number of pins
4
Dim
(W x H x D) 250 x 300 x 125 mm
Nominal current
250 A
Datasheet (PDF)
Technical specifications
- Product type
Component
- Factory colour
Pure white (RAL 9010)
- Number of pins
4
- Dim
(W x H x D) 250 x 300 x 125 mm
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Content
1 pc(s)
- Width
250 mm
- Height
300 mm
- Depth
125 mm
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3196924 Hager UE21A5 Module universal 300x250mm f. SLS on SAS-System 40mm horizontal Component Pure white (RAL 9010) 4-pin 250 A
User & Safety Instructions
User & Safety Instructions 3196924 Hager UE21A5 Module universal 300x250mm f. SLS on SAS-System 40mm horizontal Component Pure white (RAL 9010) 4-pin 250 A
Description
Component, universal, 300x250mm, for SLS on busbar system 40mm horizontally. Univers N busbar module with busbar carrier for establishing a low voltage distribution as switching device combination up to 1600A, rated voltage 3AC 690 V /50Hz. Standard sealable protective cover, reinforced by means of gas pressure method with four quick-release bolts each. VDE sign approvals according to DIN EN 61 439 -1-6-1 / 2-4-1 &--2 (VDE 0660 part 600 -1 and -3-3), standard: DIN 43 870.
