Hager VA602NWH VA602NWH Distribution board (equipped) Surface-mount No. of rows = 2 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board (equipped)
No. of rows
2
Mounting type
Surface-mount
Width
305 mm
Height
765 mm
Datasheet (PDF)
Technical specifications
- Product type
Distribution board (equipped)
- with PE and N terminals
Yes
- No. of rows
2
- Mounting type
Surface-mount
- Width
305 mm
- Height
765 mm
- Dim
(W x H) 305 mm x 765 mm
- Content
1 pc(s)
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3358443 Hager VA602NWH VA602NWH Distribution board (equipped) Surface-mount No. of rows = 2 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3358443 Hager VA602NWH VA602NWH Distribution board (equipped) Surface-mount No. of rows = 2 Content 1 pc(s)
Description

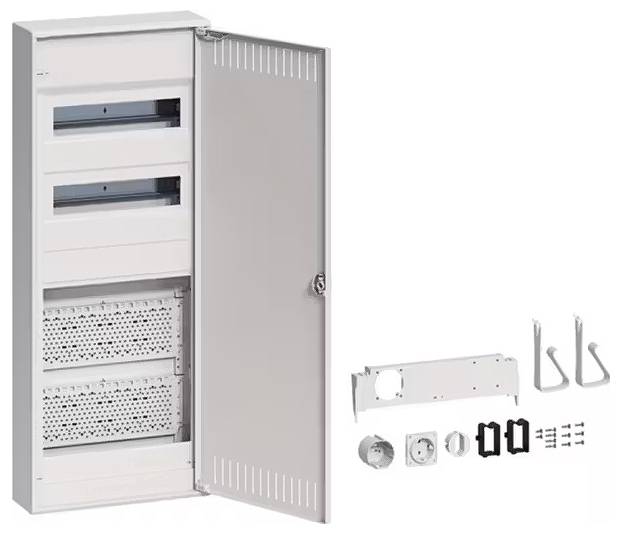

Hybrid, Volta, surface-mounted, 24PLE, 2 mounting plates, Socket and sheet steel door.Installation small distributor surface-mounted made of plastic, tested according to DIN VDE 61439-3. Rated voltage max. 400 V / 50 Hz, protection class IP30.
Consisting of plastic floor plate and break-out cable guide. Ventilation door made of steel sheet with ventilation openings. Front flush with inside, hand-operated hinges. Door lock with front flush handle and automatic fold-back handle. Door stop right or left without blinding frame-dismantling.
2-row device carrier made of galvanized steel plate 2-row plastic device cover for 24 (28) modules with 46 mm device slot. Finger-safe PE/N terminal with plug-in technology in an mounting-friendly snap technology. A seal has been fitted to provide secure separation between the multimedia part and the distribution of the circuit, which also allows for up to two sockets at the same time. Generous mounting space with pre-mounted / n mounting plate made of plastic regular punching according to DIN 24041. Device holder for the screw-less mounting of devices for direct mounting on the perforated plate by hanging or screwing are included.
Cable routing clips can be installed in the designated quick-release fasteners on the left and right.
This text is machine translated.
Consisting of plastic floor plate and break-out cable guide. Ventilation door made of steel sheet with ventilation openings. Front flush with inside, hand-operated hinges. Door lock with front flush handle and automatic fold-back handle. Door stop right or left without blinding frame-dismantling.
2-row device carrier made of galvanized steel plate 2-row plastic device cover for 24 (28) modules with 46 mm device slot. Finger-safe PE/N terminal with plug-in technology in an mounting-friendly snap technology. A seal has been fitted to provide secure separation between the multimedia part and the distribution of the circuit, which also allows for up to two sockets at the same time. Generous mounting space with pre-mounted / n mounting plate made of plastic regular punching according to DIN 24041. Device holder for the screw-less mounting of devices for direct mounting on the perforated plate by hanging or screwing are included.
Cable routing clips can be installed in the designated quick-release fasteners on the left and right.
This text is machine translated.
