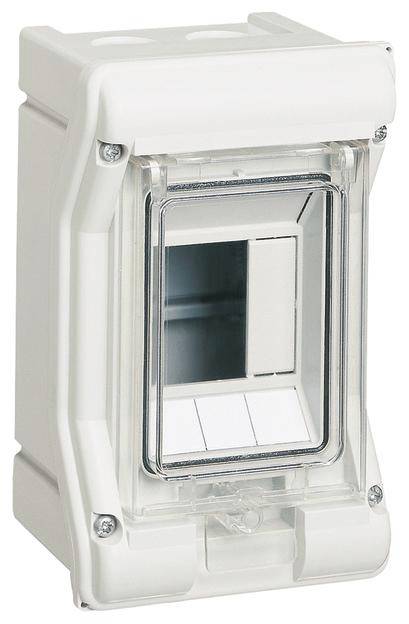

Hager VE103PN VE103PN Distribution board Surface-mount No. of rows = 1 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board
No. of rows
1
Mounting type
Surface-mount
Width
111 mm
Height
175 mm
Datasheet (PDF)
Technical specifications
- Product type
Distribution board
- No. of rows
1
- Mounting type
Surface-mount
- Factory colour
Grey (RAL 7035)
- Width
111 mm
- Height
175 mm
- Dim
(W x H x D) 111 x 175 x 93 mm
- Depth
93 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3198035 Hager VE103PN VE103PN Distribution board Surface-mount No. of rows = 1 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3198035 Hager VE103PN VE103PN Distribution board Surface-mount No. of rows = 1 Content 1 pc(s)
Description
Small distributor, vector, APV, IP65, 3PLE, UV stable, m., meter. Cable entry Installation small distributor made of polycarbonate (UV-resistant), according to DIN EN 60670-24, according to DIN 43871. For installing devices up to 63 A in accordance with DIN 43 880 standard with 70 mm or 85 mm installation depth, rated voltage AC 400 V/50 Hz. Consisting of plastic lower section with DIN rail made of galvanized sheet steel, prestamped for metric cable entry nozzles (above, below), lateral knockouts for connecting two or more splitters with one another. Upper section with 46 mm device slot. Transparent door front flush, right or left impact able, sealable, lockable, distributor flange-able.
