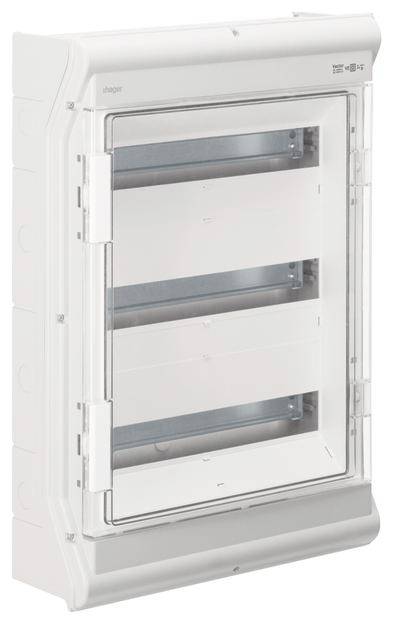

Hager VE318SN VE318SN Distribution board Surface-mount No. of rows = 3 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution board
No. of rows
3
Mounting type
Surface-mount
Width
418 mm
Height
602 mm
Datasheet (PDF)
Technical specifications
- Product type
Distribution board
- No. of rows
3
- Mounting type
Surface-mount
- Factory colour
Grey (RAL 7035)
- Width
418 mm
- Height
602 mm
- Dim
(W x H x D) 418 x 602 x 151 mm
- Depth
151 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3198052 Hager VE318SN VE318SN Distribution board Surface-mount No. of rows = 3 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3198052 Hager VE318SN VE318SN Distribution board Surface-mount No. of rows = 3 Content 1 pc(s)
Description
Small distributor, vector, APV, IP65, 54PLE, UV-stable, without cable entry. Installation small distributor made of polycarbonate (UV-resistant), according to DIN EN 60670-24, according to DIN 43871. For installing devices up to 63 A in accordance with DIN 43 880 standard with 70 mm or 85 mm installation depth, rated voltage AC 400 V/50 Hz. Consisting of plastic lower section with DIN rail made of galvanized sheet steel, prestamped for metric cable entry nozzles (above, below), lateral knockouts for connecting two or more splitters with one another. Upper section with 46 mm device slot. Transparent door front flush, right or left impact able, sealable, lockable, distributor flange-able.
This text is machine translated.
