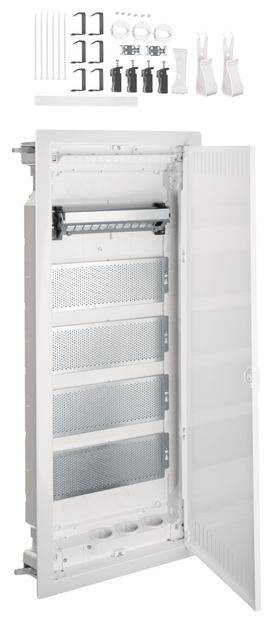

Hager VH60NW VH60NW Multimedia switchgear Cavity wall No. of rows = 5 Content 1 pc(s)

Multimedia, volta, HWV, 5-row, with slit sheet steel door. Installation small distributor hollow-wall made of plastic, according to DIN VDE 61439-3, suitable for use in residential buildings according to DIN 18015 and for installation of insulated VDI components. Protection class IP30, protection class II insulated. Consists of: Plastic wall box with standard cable removal, break-out cable entry slider with snap-on mounting and integrated spirit level. Hollow-wall mounting with quick fixing lever, can be mounted laterally or above/below. Rotatable blende frame with air door made of steel sheet, powder-coated and burned-in, with 15 mm plaster balancing. Ventilation door, front-flush with inside hand-operated hinges. Door lock with front flush handle and automatic folding handle, door stop on the right or left without frame removal. Upper connection area: Patch panel and DIN rail mounted insulated for accommodating different communication modules, for the required functional potential equalization according to DIN EN 50310 (VDE 0800-2-310) screw fastenings are available on the patch panel 2. Labelling possibility with enclosed labeling strips for port labeling. Pre-assembled perforated mounting plates made of galvanized steel plate with 3.2 mm hole are installed. A universal retaining bracket can be hung directly on the perforated plate for the screw-less mounting of VDI components. In the lower connection compartment a 3-way Schuko socket (can be turned by 90°) is fitted. The sockets are equipped with an enclosed protective-contact cover to comply with protection class II. Note: A type 3 surge protector can be connected directly (not included).

This text is machine translated.
