Hager ZAL142P Hager ZAL142P distribution column with mounting plate 1420x320x225mm Distribution column Grey (RAL 7035) 1
EAN:
Part number:
Item no:
Product type
Distribution column
Factory colour
Grey (RAL 7035)
Dim
(W x H x D) 320 x 1420 x 225 mm
Content
1 pc(s)
Width
320 mm
Technical specifications
- Product type
Distribution column
- Factory colour
Grey (RAL 7035)
- Dim
(W x H x D) 320 x 1420 x 225 mm
- Content
1 pc(s)
- Width
320 mm
- Height
1420 mm
- Depth
225 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3199842 Hager ZAL142P Hager ZAL142P distribution column with mounting plate 1420x320x225mm Distribution column Grey (RAL 7035) 1
Description

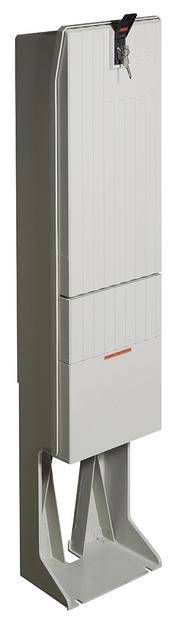

Distributor column, series 142, with mounting plate, 1420 x 320 x 225 mm. Distribution column in accordance with DIN EN 61439, protection class IP 44, with engrave base, made of glass-fiber reinforced polyester FS 833.5 according to DIN EN 14598. Empty column for mounting plate, mounting kit and installation fields. Profiled housing in ribbed design, removable push-in door, simple locking with profile half cylinders, double locking is possible. Ventilation takes place via labyrinthine-like ventilation ducts and is pungent by penetration of foreign objects. Grave base and distributor column form one unit. Floor grating is recommended. To avoid condensation, fill the base up to the height of the cable mounting rail with the socket filler on the inside.
