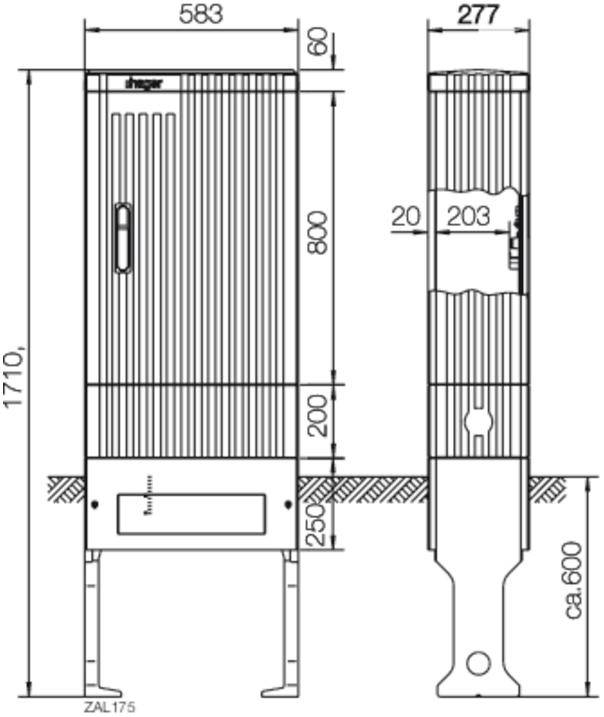

Hager ZAL175 Hager ZAL175 distribution column empty 1710x583x277mm Distribution column Grey (RAL 7035) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution column
Factory colour
Grey (RAL 7035)
Dim
(W x H x D) 583 x 1710 x 277 mm
Content
1 pc(s)
Width
583 mm
Technical specifications
- Product type
Distribution column
- Factory colour
Grey (RAL 7035)
- Dim
(W x H x D) 583 x 1710 x 277 mm
- Content
1 pc(s)
- Width
583 mm
- Height
1710 mm
- Depth
277 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3199887 Hager ZAL175 Hager ZAL175 distribution column empty 1710x583x277mm Distribution column Grey (RAL 7035) 1 pc(s)
Description
Distribution column, 175 series, empty, 1710 x 583 x 277 mm. Distribution column in accordance with DIN EN 61439, protection class IP 44, with engrave base, made of glass-fiber reinforced polyester FS 833.5 according to DIN EN 14598. Empty column for mounting plate, mounting kit, installation fields and counter field. Profiled housing in ribbed design. Door with opening angle 180 degrees at free state and 90 degrees in series housings. Right door is unhinged. Lockable with pivot lever, three-point baskle catch, double lock, one profile half cylinder is built in. Ventilation takes place via labyrinthine-like ventilation ducts and is pungent by penetration of foreign objects. Grave base and distributor column form one unit. Floor grating is recommended. To avoid condensation, fill the base up to the height of the cable mounting rail with the socket filler on the inside.
This text is machine translated.
This text is machine translated.
