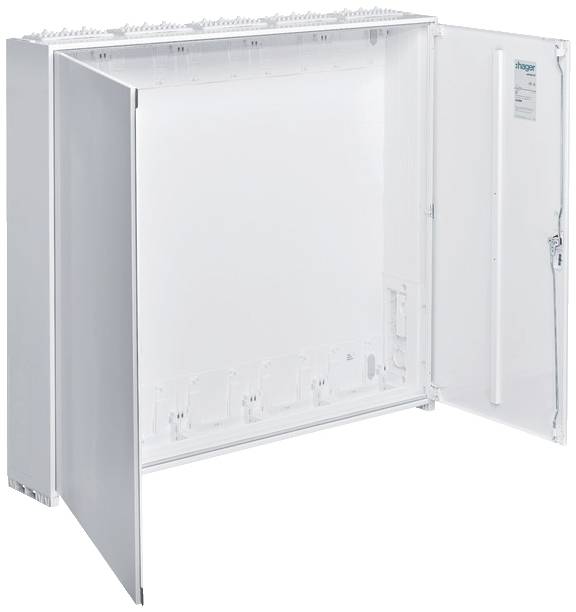

Hager ZB35W ZB35W Meter box Surface-mount Content 1 pc(s)

Meter cabinet, universal Z, 1100x1300x205 mm, protection class II, 420 square units. Cabinet housing according to DIN VDE 0603-1, standard DIN 43870 for surface mounting, flush mounting or partly countersunk mounting. For building a counter distribution system up to 355 A, rated voltage 230/400 V 50 Hz. Protection type IP31 (IP44/IP54 according to DIN VDE 0470-1), protection class II insulated, protection class IP3X behind the door. Consists of cupboard with door made of powder-coated, burned-in, stable profiled 1 mm thick steel plate. Inner lining made entirely of plastic. Cable entries above and below through integrated plastic flange plates, rear embossing in the plastic part and plastic flange plates installed on the sides in the area of the NAR (suitable as a busbar feed-through), the RFZ (only with 1100 mm height) and the AAR. Front door flush with inside, adjustable hinges that can be angled either on the right or left with a 110° opening angle. Door lock with pilot drive, from width 800 mm and for all cabinets starting from a height of 1250 mm with stick lock with three-point lock. Door lock can be replaced by other locks. Cabinet next to each other and flange-able on top of each other. Cabinet size 1 to 5-field with 72 to 540 space units (PLE). Note: For a cabinet-to-cabinet connection, always use a connection kit (accessory). In the AAR area, the plastic flange plates can be removed and an optional SCHUKO socket or a CEE socket can be installed.
