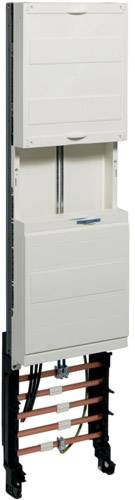

Hager ZH33X7 ZH33X7 Field distributor Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Field distributor
Width
250 mm
Height
1050 mm
Factory colour
White
Dim
(W x H) 250 mm x 1050 mm
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
Technical specifications
- Product type
Field distributor
- Factory colour
White
- Width
250 mm
- Height
1050 mm
- Dim
(W x H) 250 mm x 1050 mm
- Content
1 pc(s)
- Weight
0
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1845579 Hager ZH33X7 ZH33X7 Field distributor Content 1 pc(s)
Description
Complete field, universZ, 1050 mm, 1 meter place, 1-field, NRW, SH, MV, N-Saxony, EON Center
This text is machine translated.
This text is machine translated.
Features
- Counter input: 3-Point System
- Number Counter places: ≤ 63 A 1
- Number Counter fields (assembly kits): 1
- With Multimedia Field: no
- Number of fields: 1
- Power form TN-S
- Pola number wiring: 5-pin
- Busbar thickness: 5 mm
- Bus bar height: 12 mm
- Bus bar distance: 40 mm
- Bus Terminals contain no dining: no
- Cable cross-section counter access line: 10 mm2
- Cross-section of the cable meter outlet line: 10 mm2
- Facilities Meter space: without facilities
- Facilities UAR counter field: with busbars 5-pin
- Main device UAR counter field: for installation of selective main circuit breaker
- Additional Device UAR counter field: empty
- Main device OAR counter field: main cable branch terminal, 3-pin
- Contact-safe up to 25 mm2
- Additional Device OAR counter field: empty
- PE/N terminals OAR counter field: screw terminal 2 x 13 clamping points
- Facilities OAR SG/TRE-Field: without assembly
