Hager ZH3ET16 ZH3ET16 Switchboard Recess-mount No. of partitions = 12 No. of rows = 0 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard
No. of partitions
12
No. of rows
0
Mounting type
Recess-mount
Width
250 mm
Datasheet (PDF)
Technical specifications
- Product type
Switchboard
- No. of partitions
12
- No. of rows
0
- Mounting type
Recess-mount
- Width
250 mm
- Height
1050 mm
- Dim
(W x H) 250 mm x 1050 mm
- Content
1 pc(s)
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3358714 Hager ZH3ET16 ZH3ET16 Switchboard Recess-mount No. of partitions = 12 No. of rows = 0 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3358714 Hager ZH3ET16 ZH3ET16 Switchboard Recess-mount No. of partitions = 12 No. of rows = 0 Content 1 pc(s)
Description

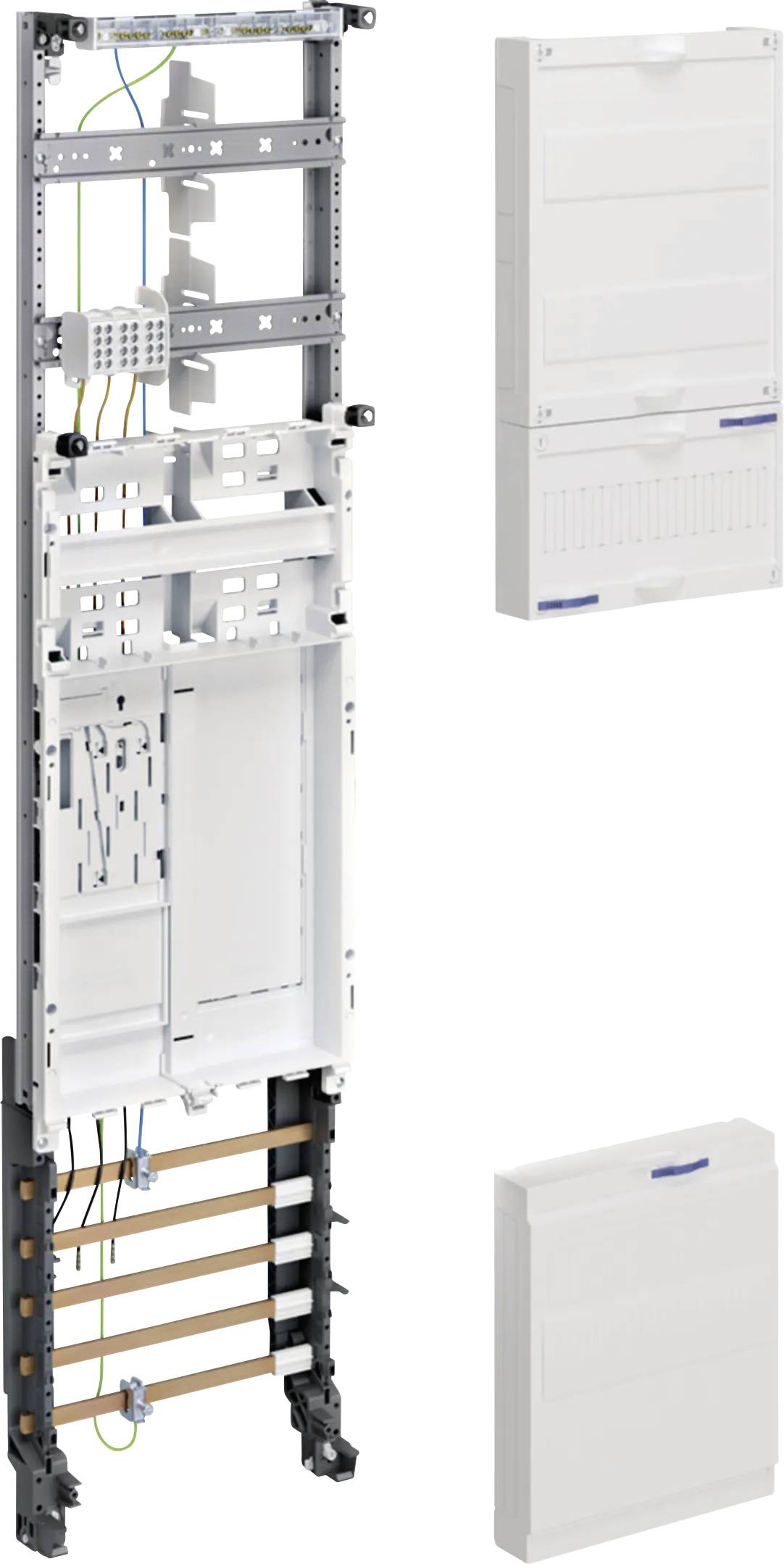

Complete field, universZ, BKE-I, 1 meter PL, 5-p. HLAK, H=1050mm, 16mm², 1-field.Complete field / installation kit univers Z for eHZ for building meter readings in accordance with DIN VDE 0603, rapid assembly in the cabinet by snap-in system, equipped and wired according to VNB TAB-regulations for eHz counter slots according to DIN VDE 1 and DIN VDE 0603-2-0603-1.
Plant-side connection space: Height 300 mm, 2-row with DIN rail fitted with main line feeder terminals according to DIN VDE 0603-3-1, 3-or 5-pin, finger-proof according to DGUV regulation 3 or equipped with: _________ __________ ___________ - Counter fields with integrated mounting and contacting device (BKE-I) for eHZ for installing eHZ counter mounting plates in accordance with DIN VDE 0603-3-2 with integrated additional room (for communication and control devices).
Additional space: 1-field, height 150 mm, with cover closed, knockouts for 12 PLE, lead-sealable, with 12 PLE mounting rail, openings for cable routing.
Network-side connection space height 300 mm equipped with CU busbars, 12 x 5 mm, 5-pin or fitted with__________ _________ ___________ .
This text is machine translated.
Plant-side connection space: Height 300 mm, 2-row with DIN rail fitted with main line feeder terminals according to DIN VDE 0603-3-1, 3-or 5-pin, finger-proof according to DGUV regulation 3 or equipped with: _________ __________ ___________ - Counter fields with integrated mounting and contacting device (BKE-I) for eHZ for installing eHZ counter mounting plates in accordance with DIN VDE 0603-3-2 with integrated additional room (for communication and control devices).
Additional space: 1-field, height 150 mm, with cover closed, knockouts for 12 PLE, lead-sealable, with 12 PLE mounting rail, openings for cable routing.
Network-side connection space height 300 mm equipped with CU busbars, 12 x 5 mm, 5-pin or fitted with__________ _________ ___________ .
