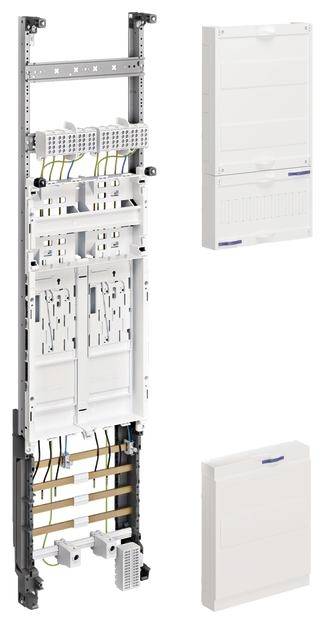

Hager ZH3ET22 ZH3ET22 Switchboard Recess-mount Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard
Mounting type
Recess-mount
Width
250 mm
Height
1050 mm
Dim
(W x H) 250 mm x 1050 mm
Technical specifications
- Product type
Switchboard
- Mounting type
Recess-mount
- Width
250 mm
- Height
1050 mm
- Dim
(W x H) 250 mm x 1050 mm
- Content
1 pc(s)
- Weight
0
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3197342 Hager ZH3ET22 ZH3ET22 Switchboard Recess-mount Content 1 pc(s)
Description
Complete field, univers Z, 2ZP, BKE-I, 1-field, Control terminal 7-pin, HLAK 5-pin Complete field / installation kit univers Z for eHZ for setting up meter points according to DIN 43870, rapid assembly in the cabinet by latch system, equipped and wired in accordance with VNB TAB-regulations for eHZ-meter slots according to DIN VDE 603-1 (VDE 0603-1). Upper connection area: 1-row height 150 mm with a DIN rail, 2-row height 300 mm with two DIN rails, equipped with main cable branch terminals 3-/4- or 5-pin, finger-proof in accordance with BGVA3 or fitted with _________ __________ ___________ - Counter fields with integrated mounting and contacting device (BKE-I) for eHZ, for installation in accordance with DIN 43870, eHZ counter support plate with integrated auxiliary space (for communication and control devices). Additional space: 1-field, height 150 mm, with cover closed, knockouts for 12 PLE, lead-sealable, with 12 PLE mounting rail, openings for cable routing. Lower connection area: Height 300 mm equipped with top-hat rail or CU busbars, 12 x 5 mm, 4-pin / 5-pin or fitted with __________ _________ ___________ .
