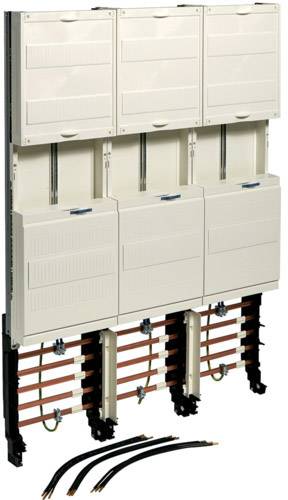

Hager ZL33X4 ZL33X4 Field distributor Section rail mount No. of partitions = 36 No. of rows = 2 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Field distributor
No. of partitions
36
No. of rows
2
Mounting type
Section rail mount
Width
750 mm
Number
Total (€ 525.21 / piece)
€ 525.21
plus VAT.
14-day return policy included
Technical specifications
- Product type
Field distributor
- No. of partitions
36
- with PE and N terminals
Yes
- No. of rows
2
- Mounting type
Section rail mount
- Factory colour
Multicolour
- Width
750 mm
- Height
1050 mm
- Dim
(W x H) 750 mm x 1050 mm
- Content
1 pc(s)
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1845482 Hager ZL33X4 ZL33X4 Field distributor Section rail mount No. of partitions = 36 No. of rows = 2 Content 1 pc(s)
Description
Features
- Counter input: 3-Point System
- Number Counter places: ≤ 63 A3
- Number Counter fields (assembly kits): 3
- With Multimedia Field: no
- Number of fields: 3
- Power form: TN-S
- Pola number wiring: 5-pin
- Busbar thickness: 5 mm
- Bus bar height: 12 mm
- Bus bar distance: 40 mm
- Bus Terminals contain no dining: no
- Cable cross-section counter access line: 10 mm2
- Cross-section of the cable meter outlet line: 10 mm2
- Facilities Meter space: without meter plug-in terminal
- Facilities UAR counter field: with busbars 5-pin
- Main device UAR counter field: for installation of selective main circuit breaker
- Main device OAR counter field: main cable branch terminal, 3-pin
- Contact-safe up to 25 mm2
- Additional Device OAR counter field: empty
- PE/N terminals OAR counter field: screw terminal 2 x 5 clamping points
- This text is machine translated.
