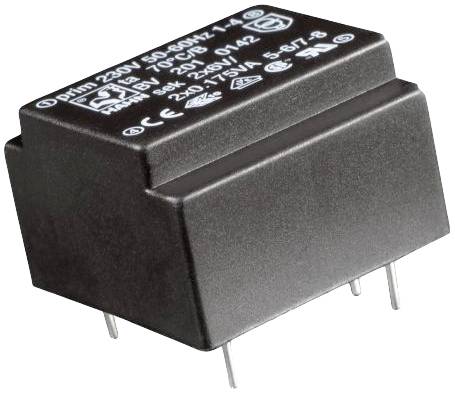

Hahn BV 201 0142 PCB mount transformer 1 x 230 V 2 x 6 V AC 0.35 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Transformer P: 230V S: 2x6V/0.35VA
- 1 x 230 V
- 2 x 6 V AC
- 0.35 VA
Technical specifications
- Product type
PCB mount transformer
- Output voltage
6 V AC
- Output voltage (number x voltage)
2 x 6 V AC
- No. of inputs
1 x
- No. of outputs
2 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
0.35 VA
- Width
22.90 mm
- Height
15 mm
- Length
22 mm
- Type
BV 201 0142
- Dim
(L x W x H) 22 x 22.90 x 15 mm
- Frequency
50 - 60 Hz
- Weight
25 g
- Content
1 pc(s)
- RoHS-compliant
Yes
- Max. ambient temperature
+70 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2827567 Hahn BV 201 0142 PCB mount transformer 1 x 230 V 2 x 6 V AC 0.35 VA
User & Safety Instructions
User & Safety Instructions 2827567 Hahn BV 201 0142 PCB mount transformer 1 x 230 V 2 x 6 V AC 0.35 VA
Description
With its very small size the BV 20 is the ideal solution for equipment manufacturers who demand a smallest possible size and do not compromise on quality and performance requirements. By the processing of double paint wire, highly heat-resistant special insulating resins and self-extinguishing sealing and casing materials, TAP transformers get additional safety reserves that make the application possible in border areas. The BV 20 with insulating material class B is ideal for use on PCBs in computer and electronics applications, household appliances and communication, lighting or photo technology.
